This is what defines the connection between a Process and the single system it's connecting with. It is also where most of the configuration and settings are stored.
Unifi Integration Designer
window, after clicking either on the '
', you are given a 'New Integration' modal to complete.
The fields to be configured for the New Integration modal are as follows:
The name of the integration.
The type of web service this integration is using
Automatically pre-process incoming messages for simpler message scripting.
(Choices: XML, JSON, Advanced)
*Service type/Message format: these values are defaulted.

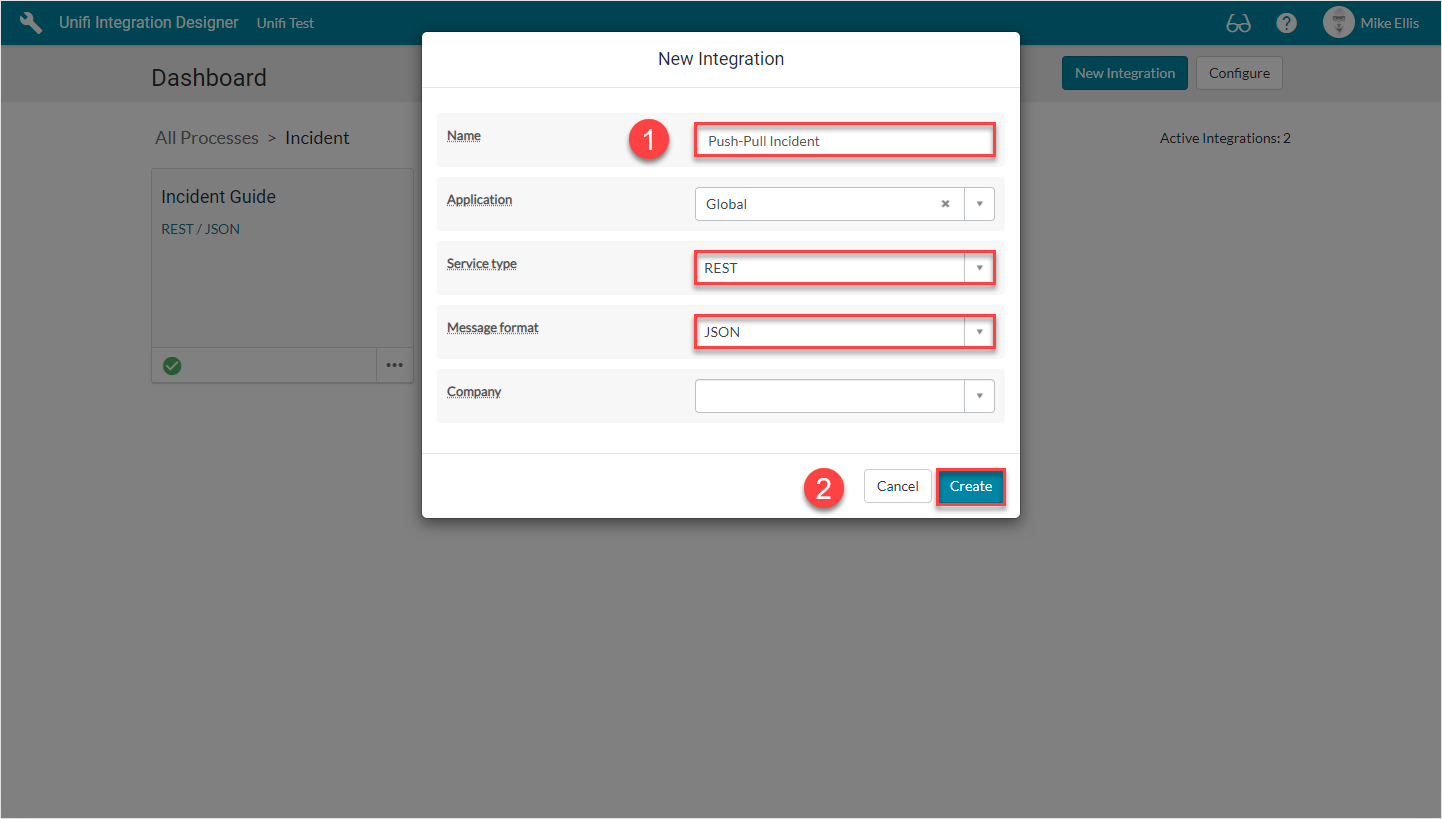

Your 'New Integration' modal should look like this:
We have chosen to name this integration 'Push-Pull Incident' as it will also later form the basis for the Poller Guides (where we pull data from your Personal Developer Instance, ‘PDI’).
You will be redirected to the Details page of the newly created Integration.

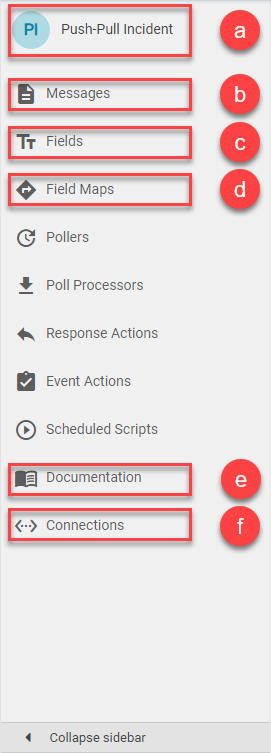

Before continuing we would like to draw your attention to some of the relevant icons that are now visible down the left hand navigation strip.
The icons are:
Opens the current integration's Details page.
Opens the current integration's Messages page.
Opens the current integration's Fields page.
'Field Maps' icon
Opens the current integration's Field Maps page.
Opens the automatically generated documentation for the current integration.
(Another awesome feature in
Opens the current integration's Connections page.

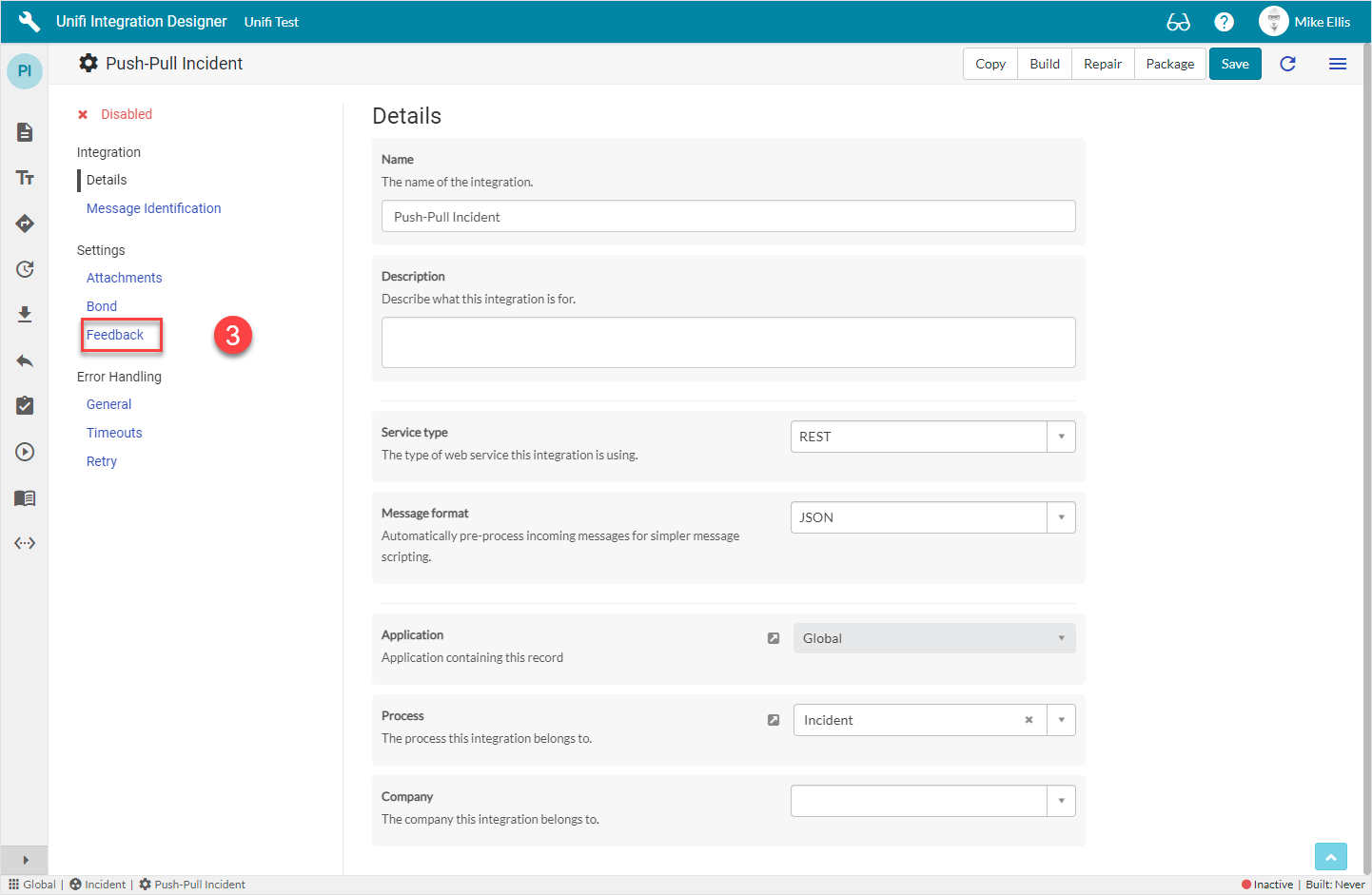

The Details page of your Integration form should look like this:
Settings > Feedback
Feedback Settings Fields
The Feedback fields to be configured for the Integration record are as follows:
Enable UI messages
Allow information and error messages to be shown to the user as UI Notifications. Only applies to certain notifications.
Note bond history
Use the 'Note bond history' to process bond history updates.
(Set to true for the history to be promoted to the work notes fields of the record we're integrating - for the analyst to view)

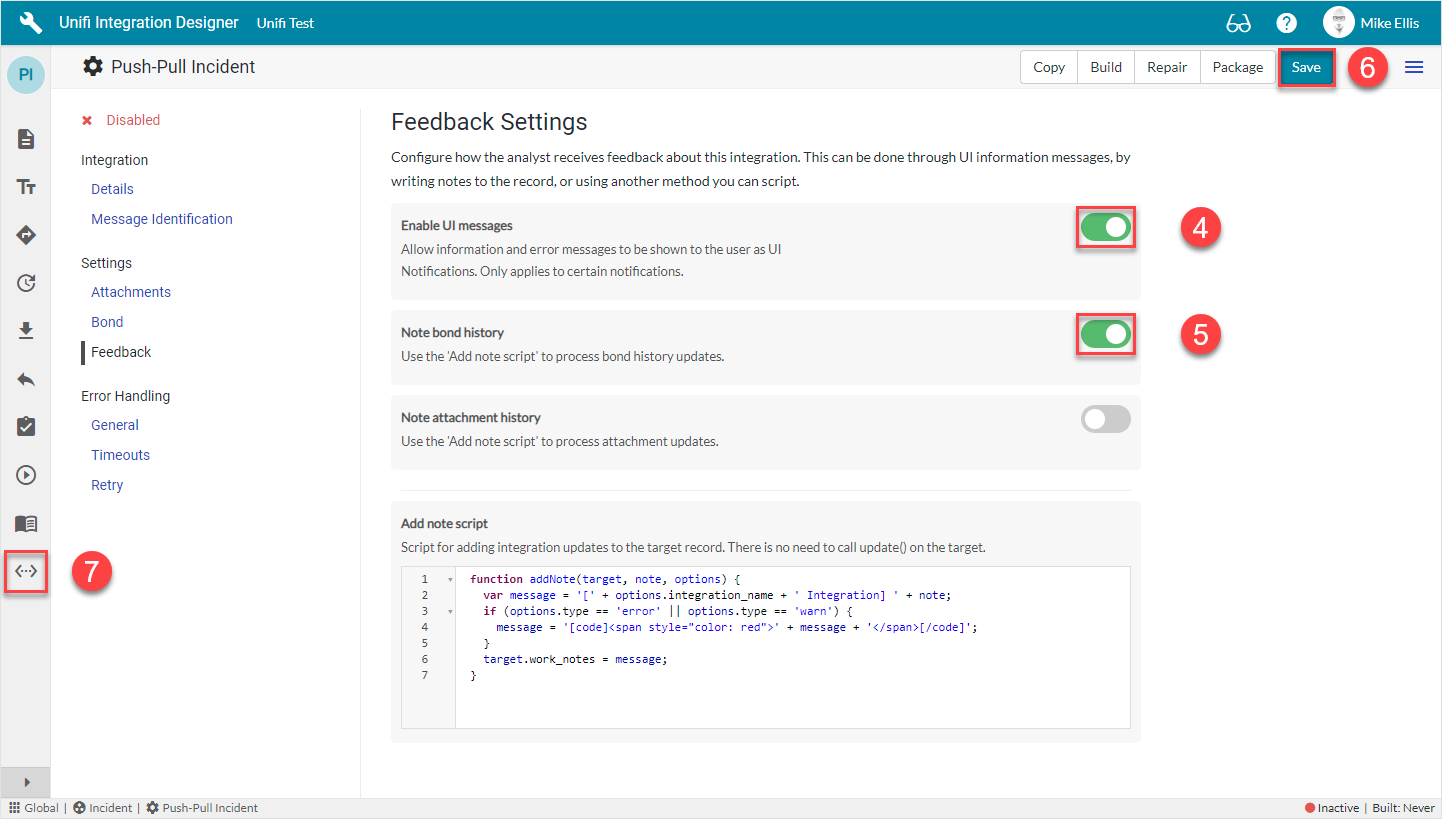

The Feedback Settings fields should look like this:
The remaining 'Integration' values are to be left as-is:
All of the remaining 'Settings' values are to be left as-is:
All of the 'Error handling' values are to be left as-is:
to move on and configure the
