Response Message
The Response Message is the immediate synchronous response that is sent to acknowledge the successful transport of another Message.
In Unifi Integration Designer, click on the 'Messages' icon & then New to begin configuring the Response Message.
The fields to be configured for the New Message modal are as follows:
#
Field
Description
Value
1
Message name
The message name that is unique for this integration.
'Response'
2
Type
The primary purpose of the message.
'Response'
3
Direction
The direction(s) this message is configured to support. (Choices: Inbound, Outbound, Bidirectional)
'Bidirectional

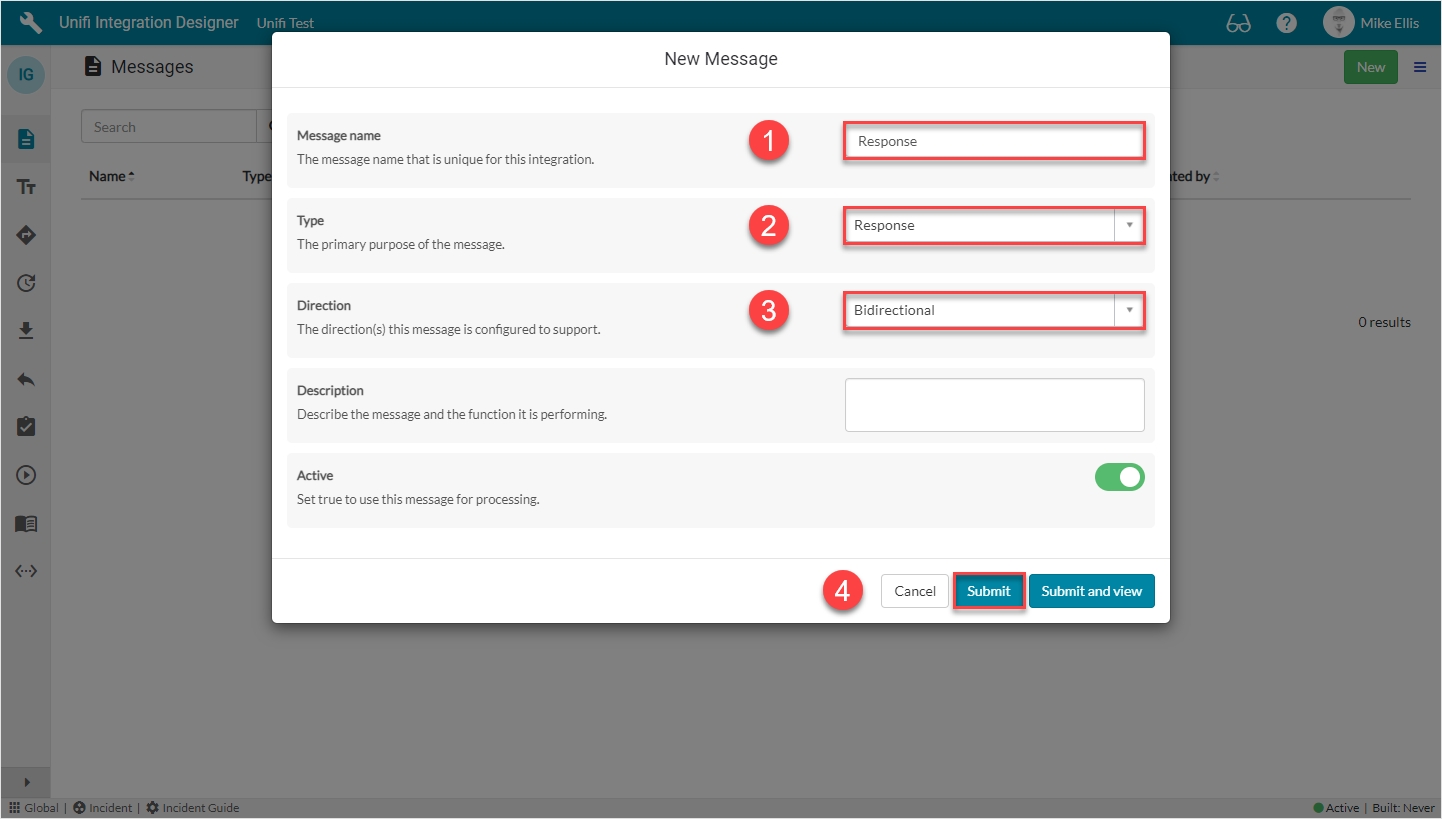

Your Response New Message modal should look like this:
4) Click Submit.
You will be redirected to the Messages page. We need not configure our Response Message any further.
Next, we shall move on and configure the CreateIncidentReceipt Message.
