Edit Child Poll Processor
Our previously configured Child Poll Processor only polled for updates against records passed to it from its Parent. We will now edit it so that it will also kick off the Select Attachments Poller.
Was this helpful?
Our previously configured Child Poll Processor only polled for updates against records passed to it from its Parent. We will now edit it so that it will also kick off the Select Attachments Poller.
Was this helpful?

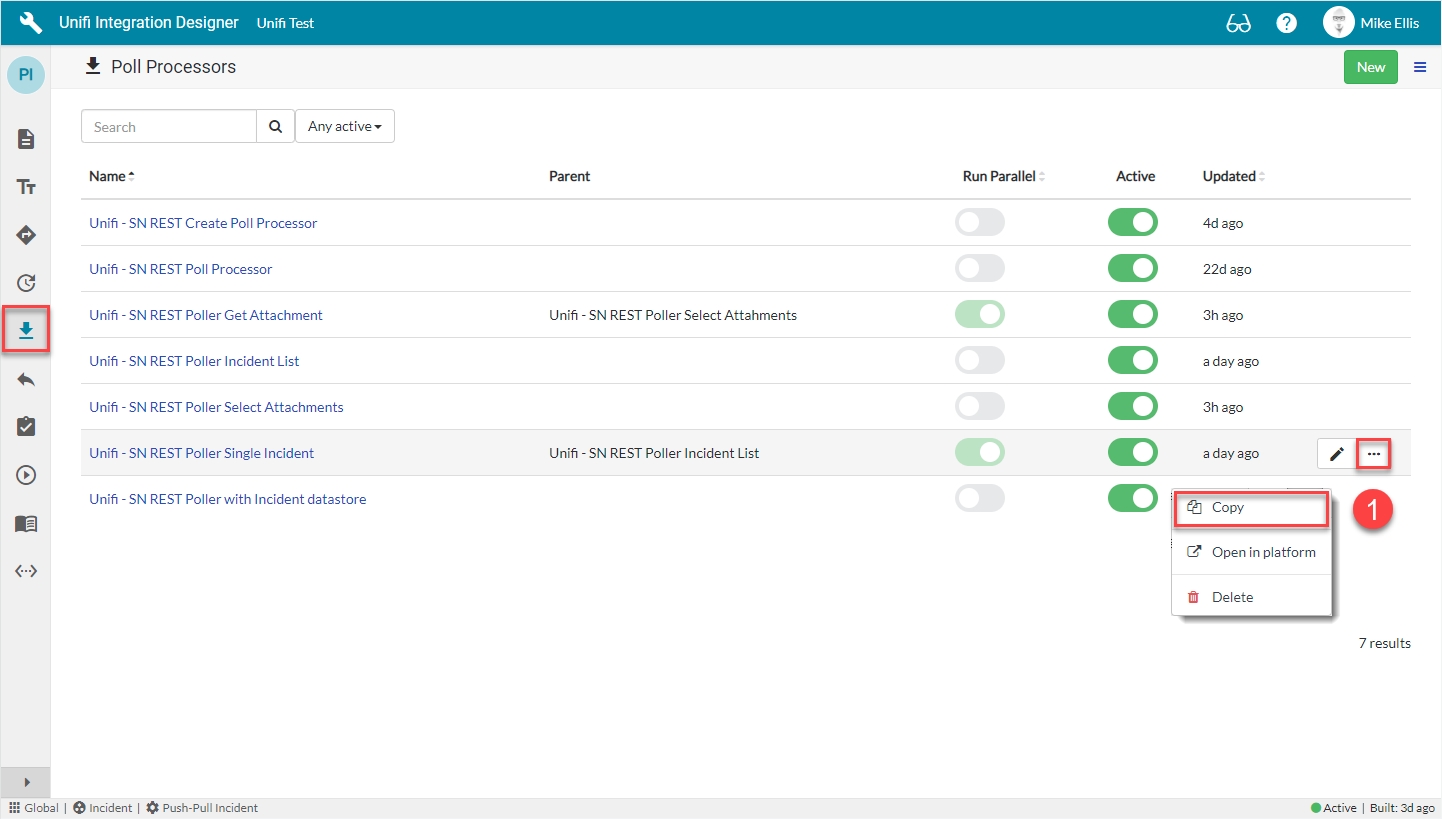

To copy the Child Poll processor, in Unifi Integration Designer, click the 'Poll Processors' Icon.
Click Copy.

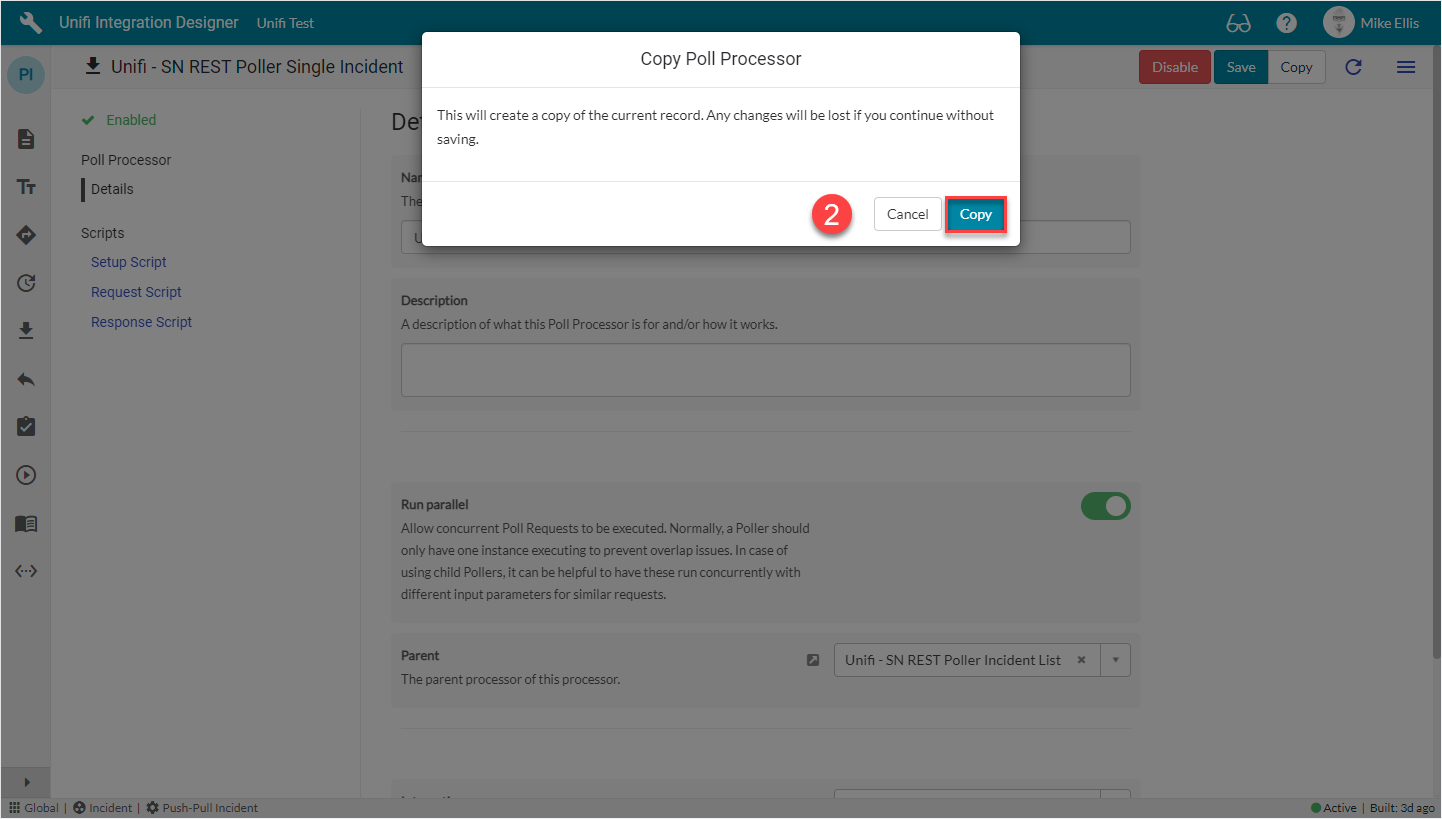

Your Copy Poll Processor modal should look like this:
You will be redirected to the Details page of the newly copied Poll Processor.
The fields to edit for the Copied Poll Processor are as follows:
Name
The name of the Processor.
<Your Name>*

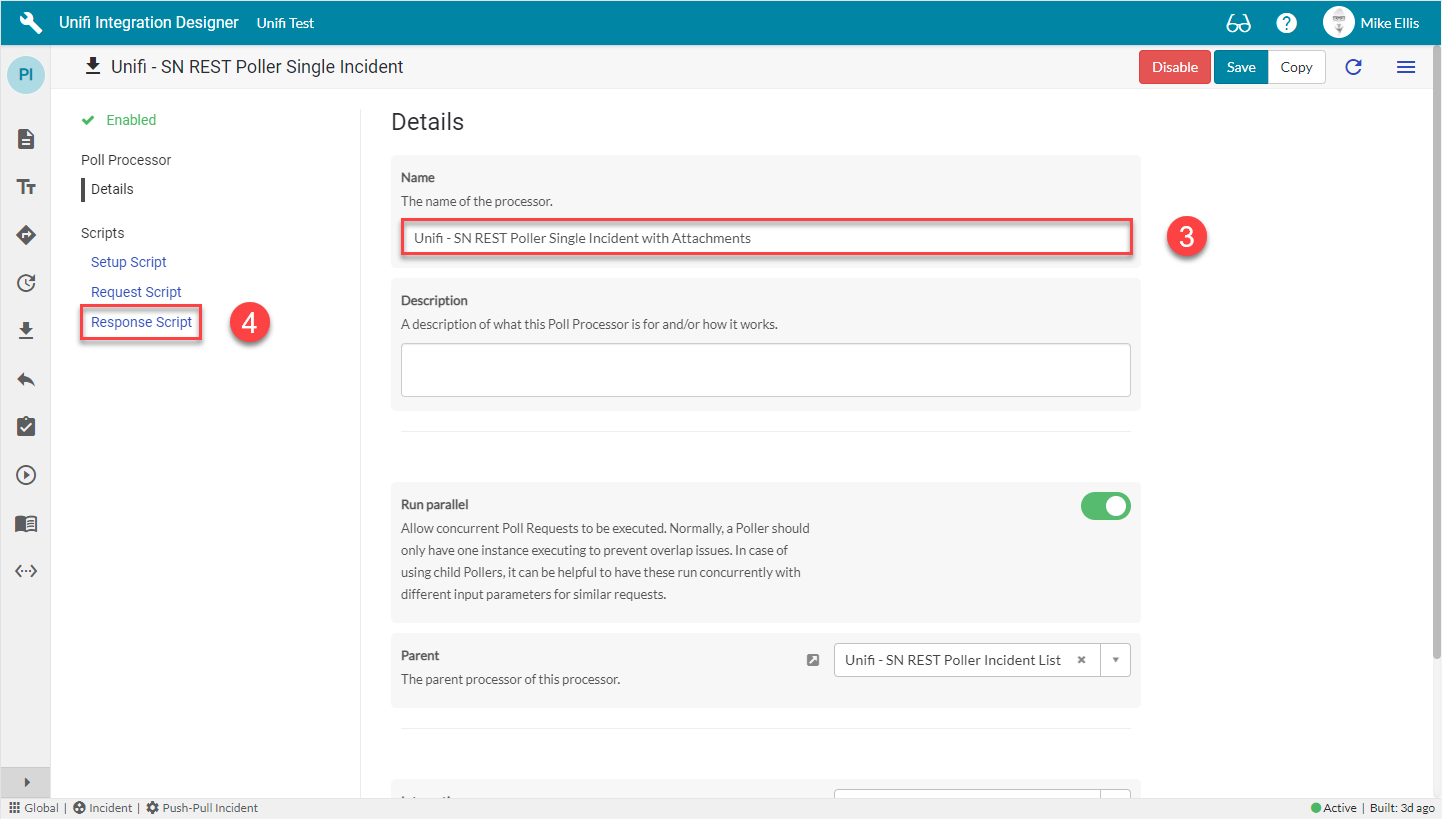

Your Copied Poll Processor should look like this:
Navigate to Scripts > Response Script.
The Response Script field is to be edited as follows:
Response Script
The script that processes the response to the request.
Update the code in the Response script field so that it looks like the code below
The code in the Response script field should look like this:

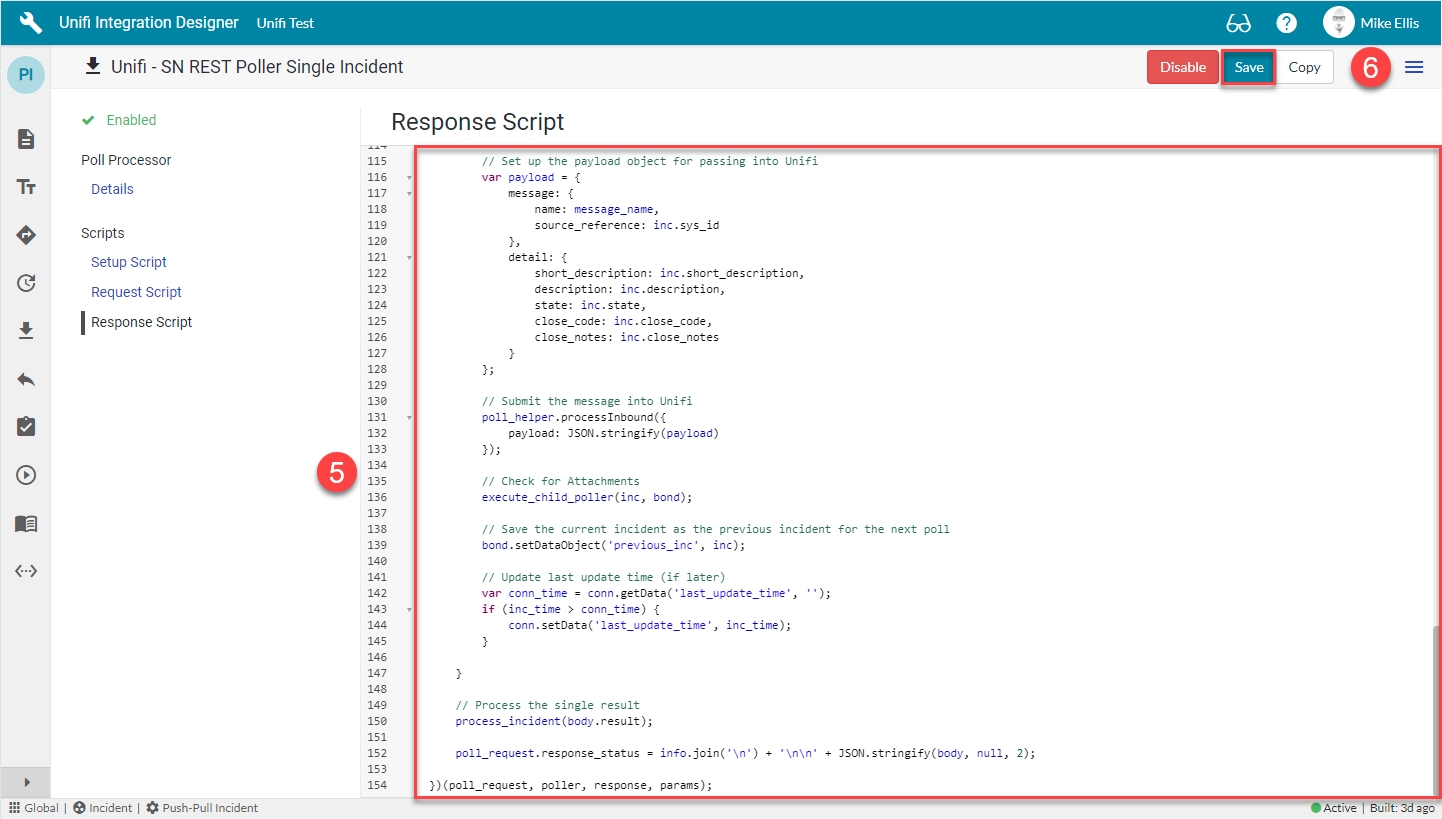

Your Response Script form should look like this:
Click Save.

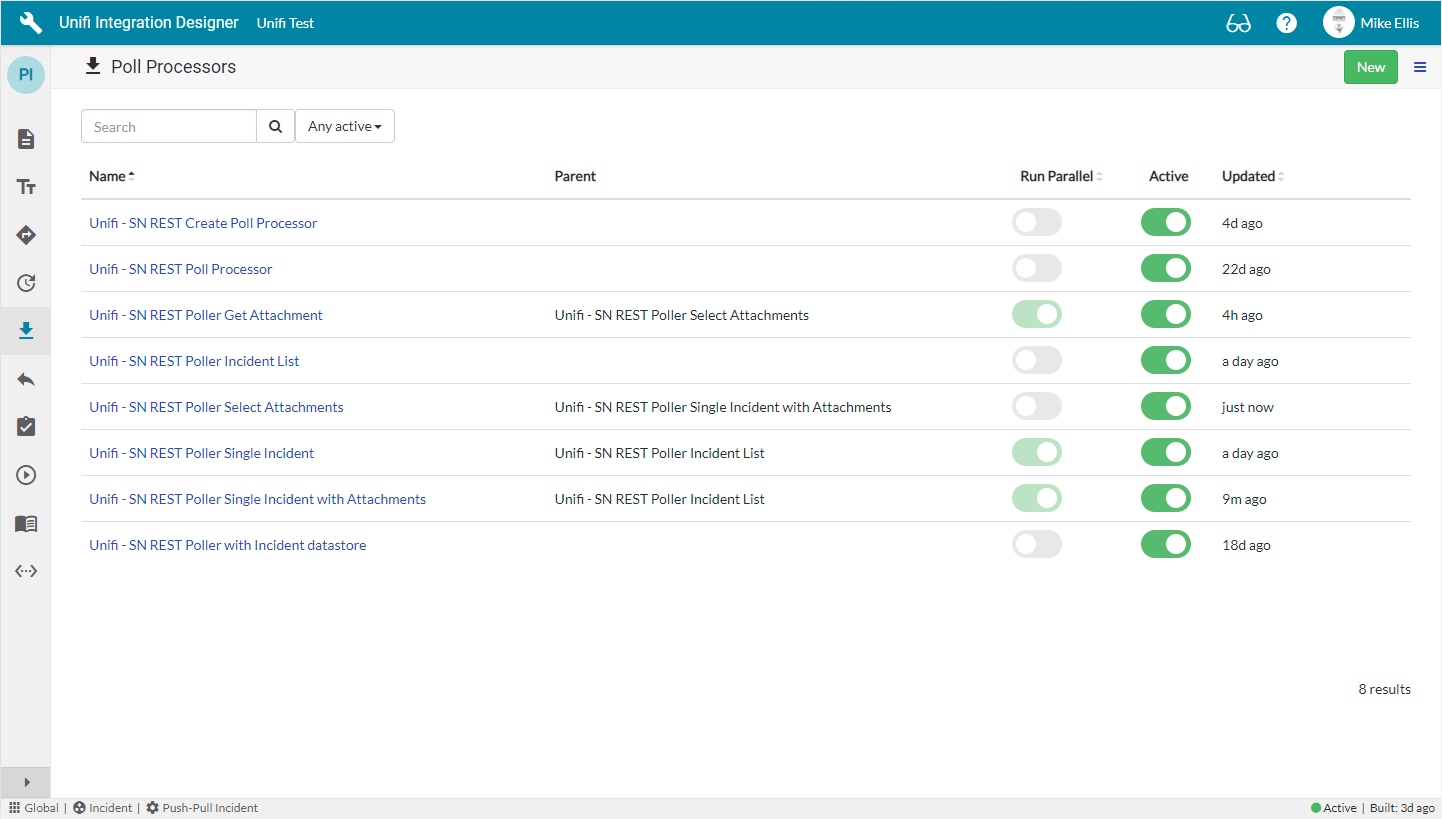

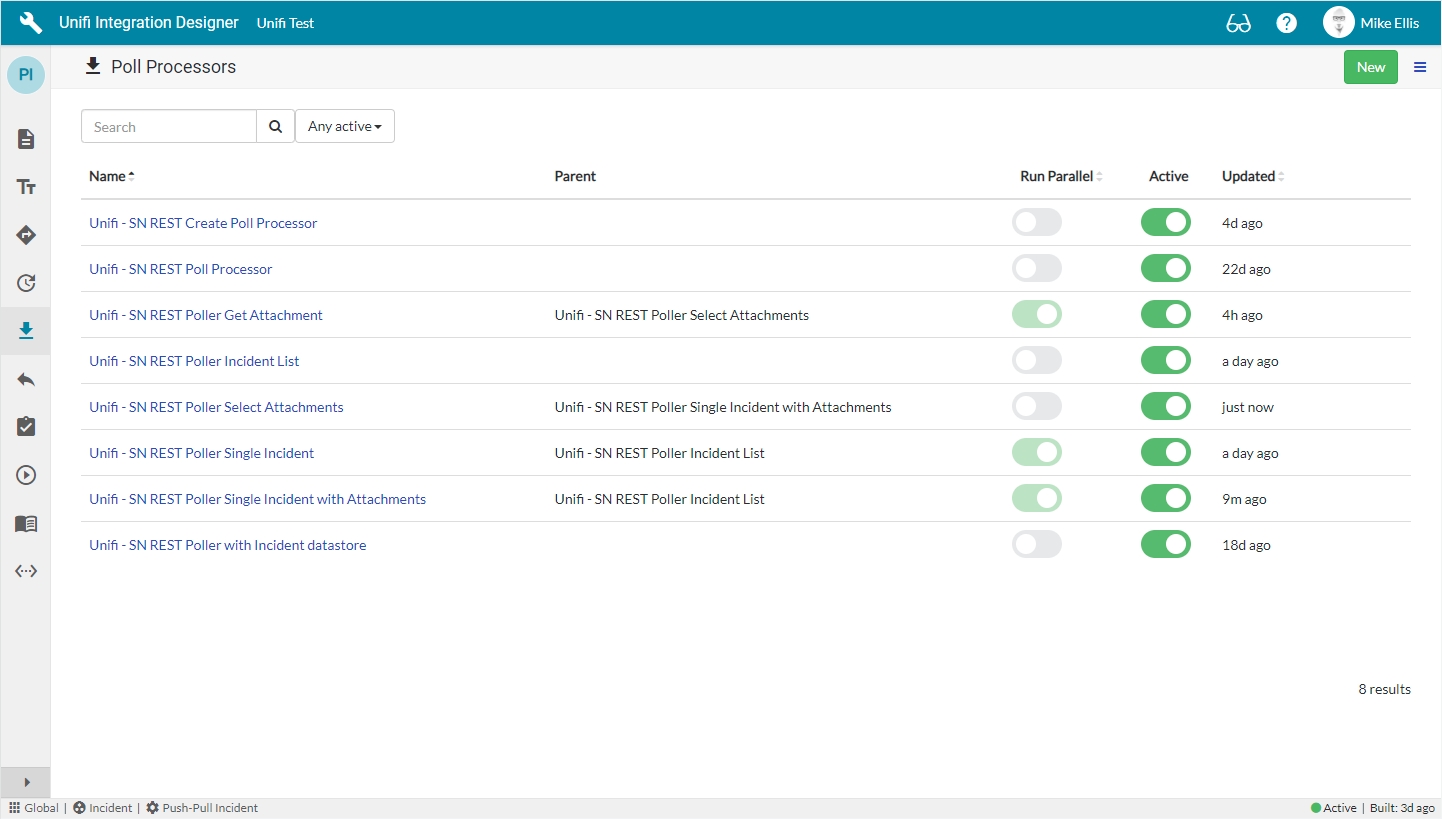

The following Poll Processors should now be in place on the Integration:
Now let's move on and edit the Child Update Poller (configured when following the Incident Parent and Child Poller Guide) so that it runs the Poll Processor created above.

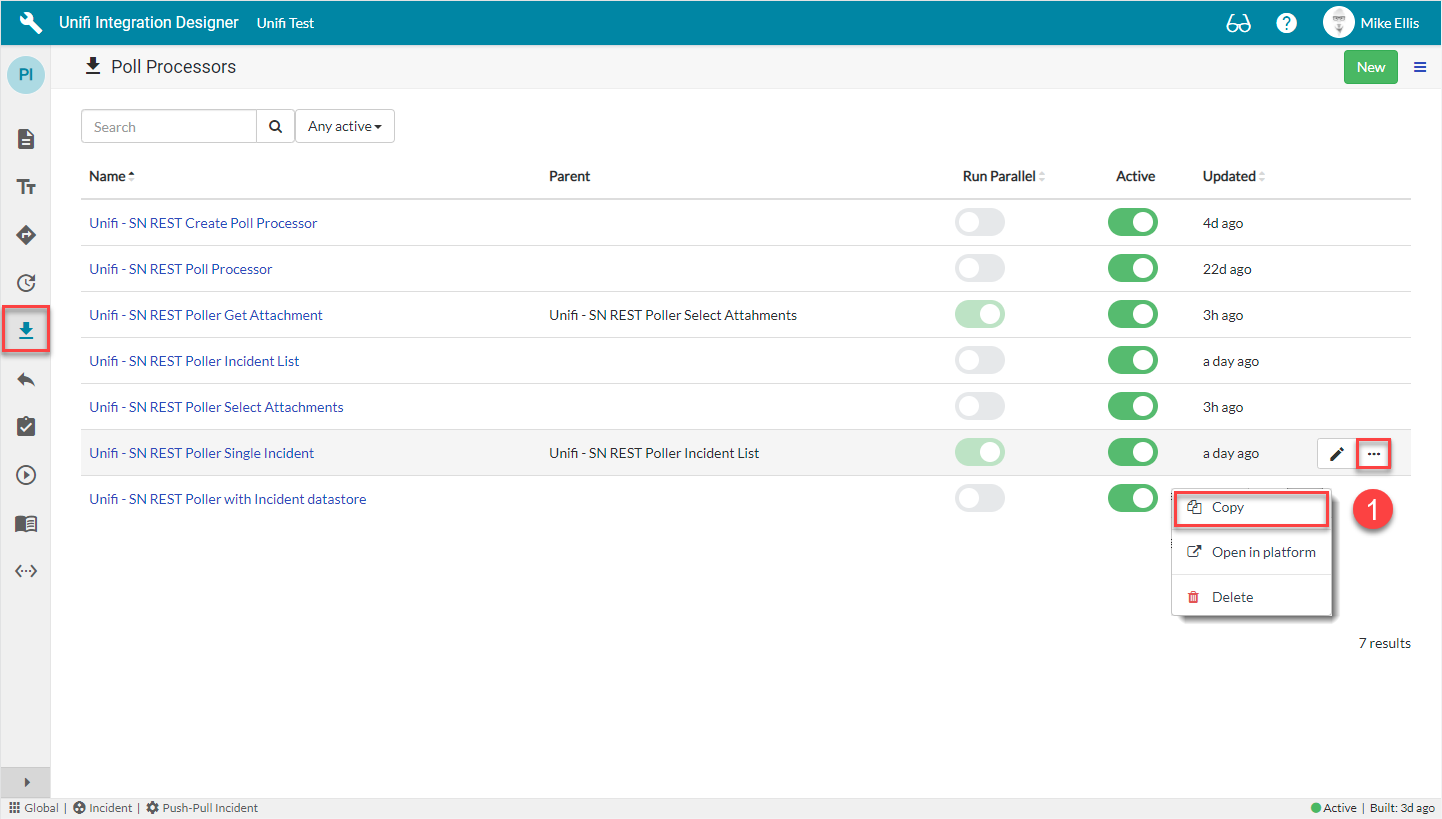

Click the ellipsis to the right of < Your Child Poll Processor > (created following the ) & then click Copy.
The x_snd_eb.Poller.execute() method has two parameters. In the first we pass the sys_id of the child Poller (as created on the '' page). In the second we pass an object containing the correlation_id on the bonded Incident as the int_ref element, the sys_id of the bonded Incident as the ext_ref element and the value of the ATTACHMENT_HWM DataStore as the attachment_hwm element (telling the child Poller which attachment records to poll).
Navigate to and open the Select Attachments Poll Processor (created on the ' page) and update the value of the Parent field by selecting its parent Poll Processor created above.
