Test Outbound Scenarios
Follow these instructions to test the outbound Message scenarios.
We will create some bonded tickets in the remote instance - initially testing the outbound Message scenarios. Those bonded tickets will then also be available to test the inbound Message scenarios.
Test CreateIncident
In native ServiceNow, navigate to Incident > Create New.
The Incident fields to configure are as follows:
Caller
Person who reported or is affected by this incident.
<Your Caller>
Short description
A brief description of the incident.
<Your Short description>
Description
Detailed explanation on the incident.
<Your Description>
Though the CreateIncident Message has been configured to map more than just the Short Description & Description fields, we have only filled these fields because that is all whe have included in the payload of our Poller.

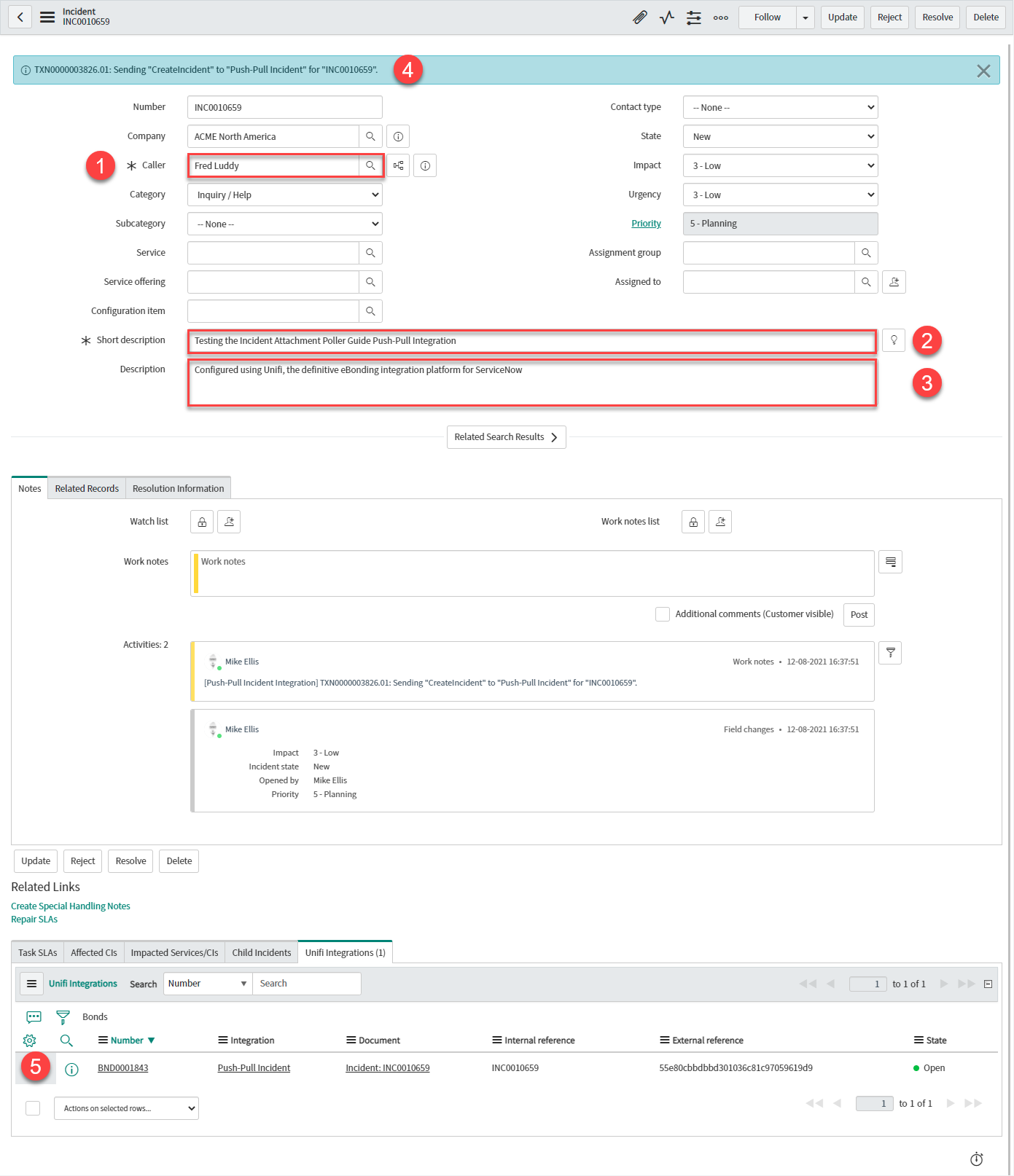

Your Incident form should look like this:
After you right-click & 'Save', note the Info Message confirming the CreateIncident Message is being sent to your Integration.
Note the Bond is 'Open' and both the Internal & External reference are in place.

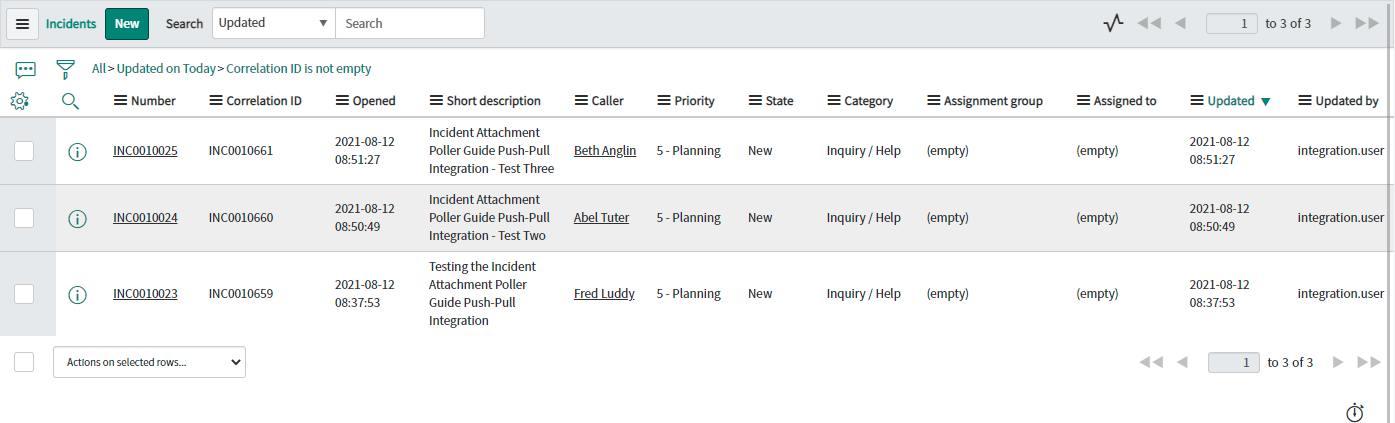

Repeat as necessary so that there are three bonded tickets in the remote instance:
Test UpdateIncident

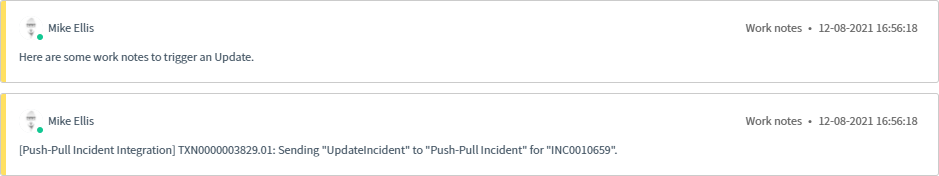

Update one of the bonded tickets in the originating instance to cause the UpdateIncident Message to fire:
View the Transactions that have been sent. This can be done either in Native ServiceNow, or in Unifi Operations Manager.

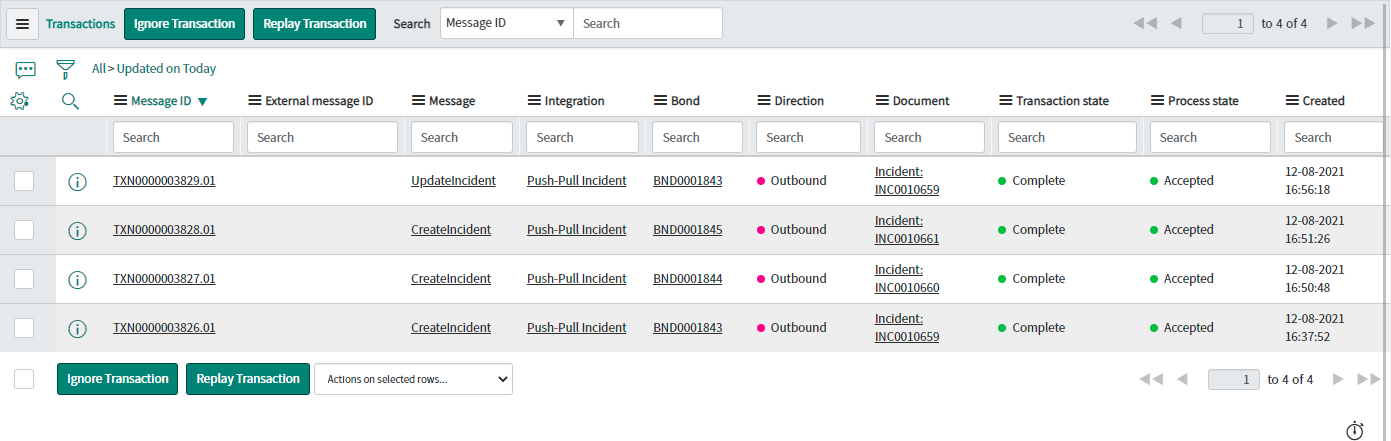

Navigate to Unifi > Transport > Transactions.

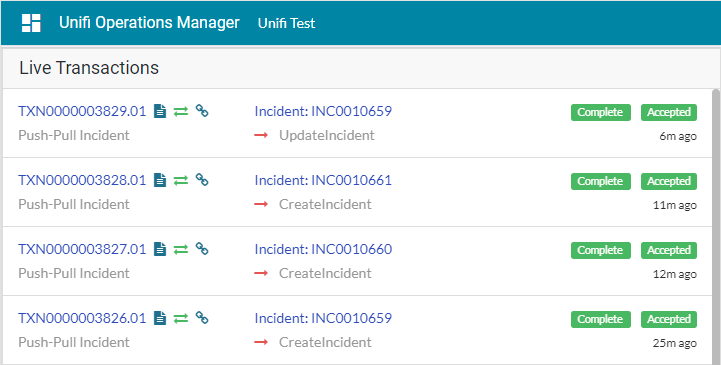

Navigate to Unifi > Unifi Operations Manager.
We can see that the three CreateIncident messages & one UpdateIncident message have been sent. All are Complete & Accepted & display the relevant Incident & Bond numbers.

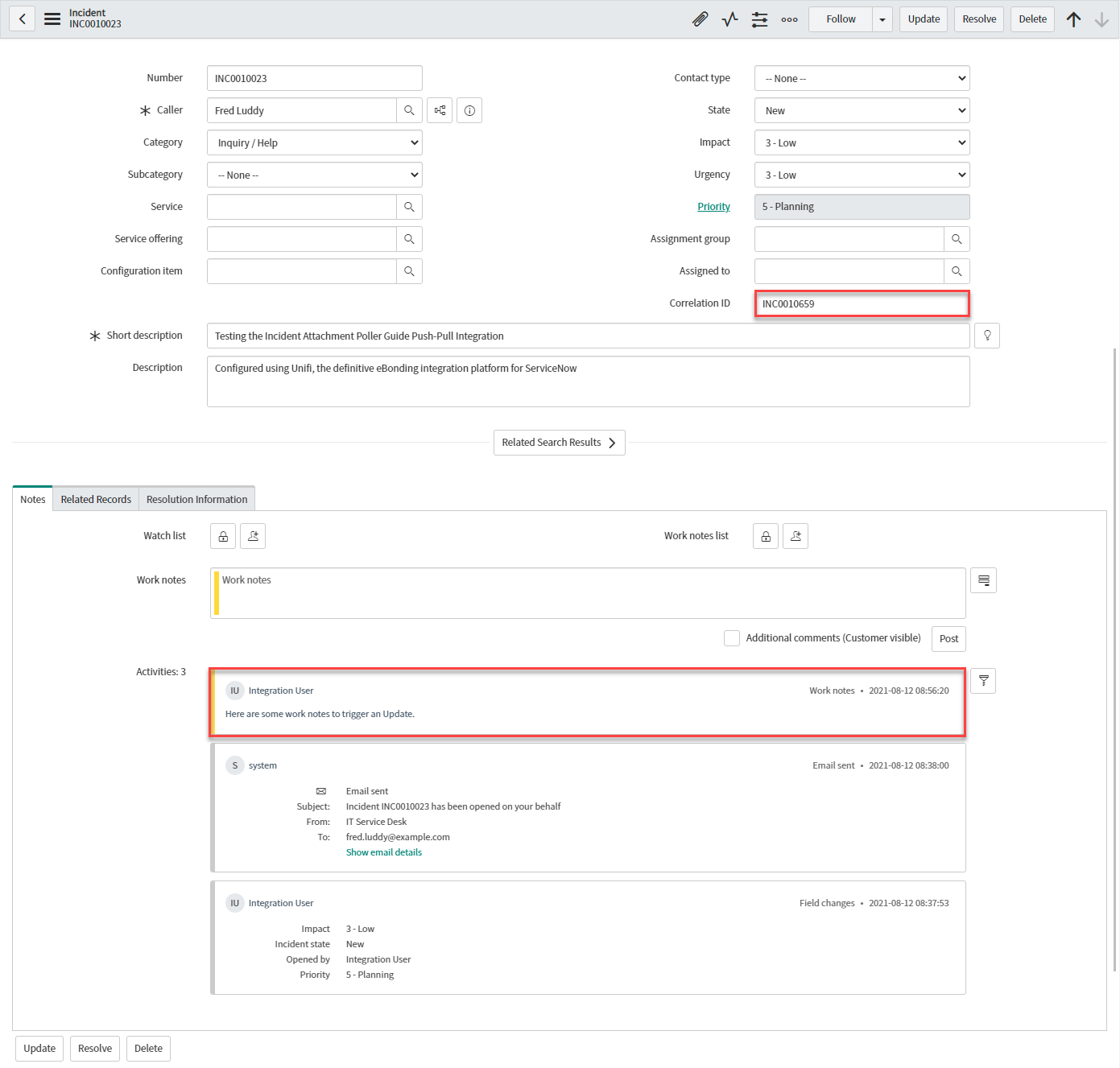

Confirm the Transaction has updated the bonded ticket in the remote instance:
We can see that the update has reached the bonded ticket (& that the correlation id matches the outbound Incident number)
Test ResolveIncident

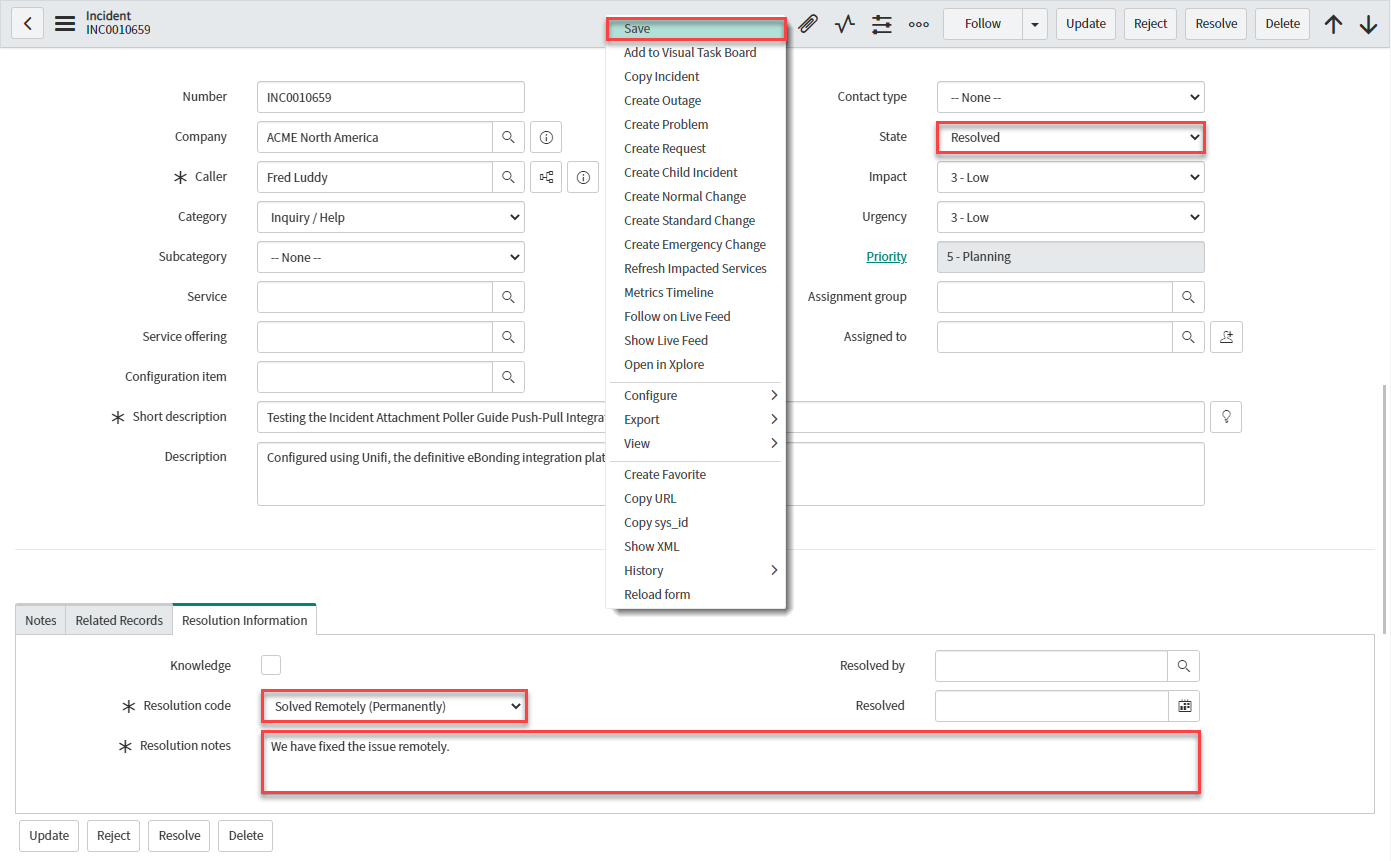

Resolve the same bonded ticket in the originating instance to cause the ResolveIncident Message to fire:
View the Transactions that have been sent. This can be done either in Native ServiceNow, or in Unifi Operations Manager.

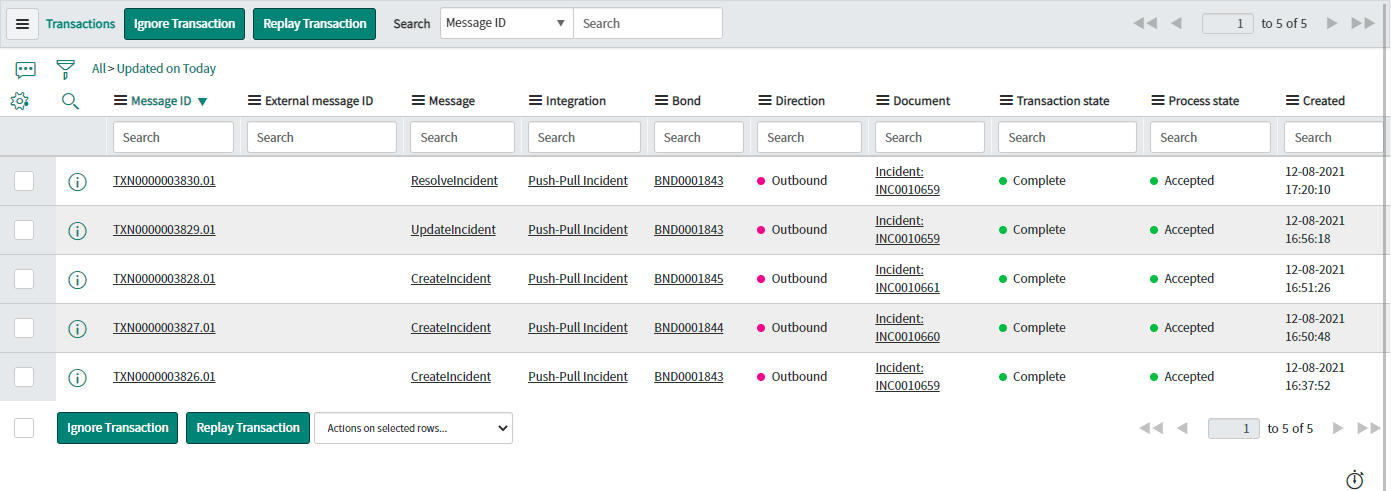

Navigate to Unifi > Transport > Transactions.

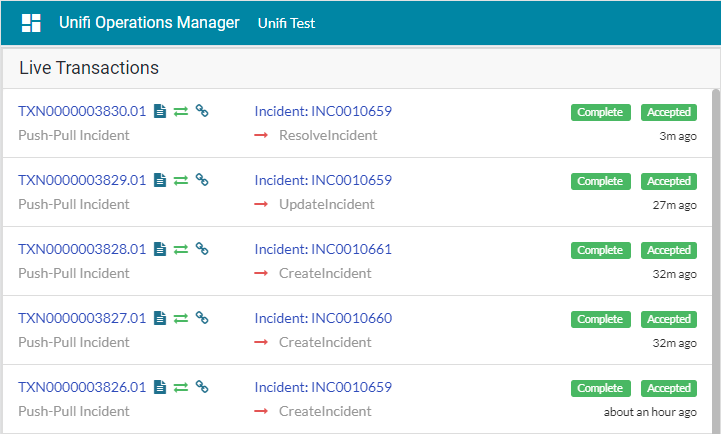

Navigate to Unifi > Unifi Operations Manager.
We can see that the ResolveIncident messages has been sent. It is Complete & Accepted & displays the relevant Incident & Bond numbers.

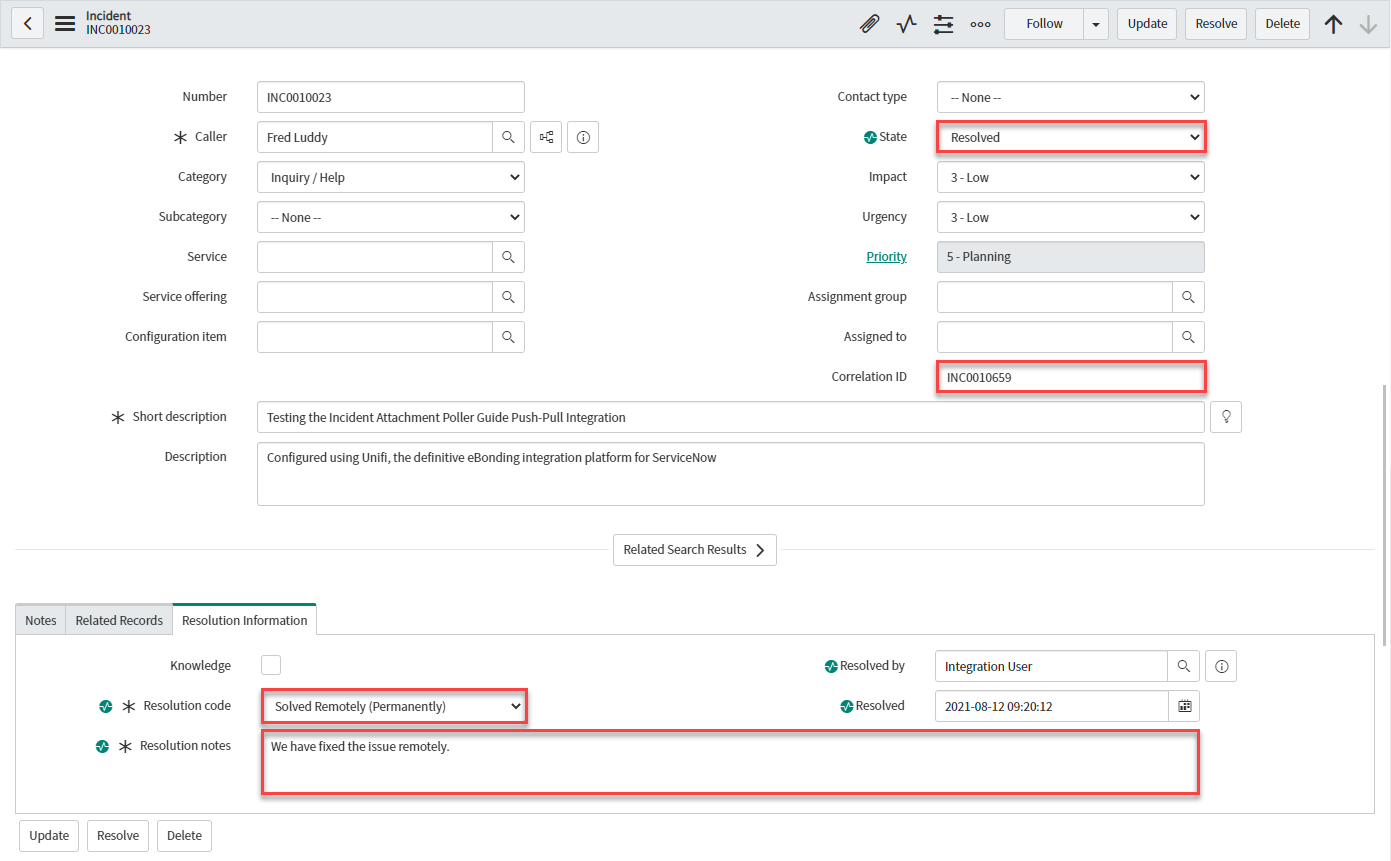

Confirm the Transaction has updated the bonded ticket in the remote instance:
We can see that the State, Resolution code & Resolution notes have been updated on the bonded ticket (& that the correlation id matches the outbound Incident number)

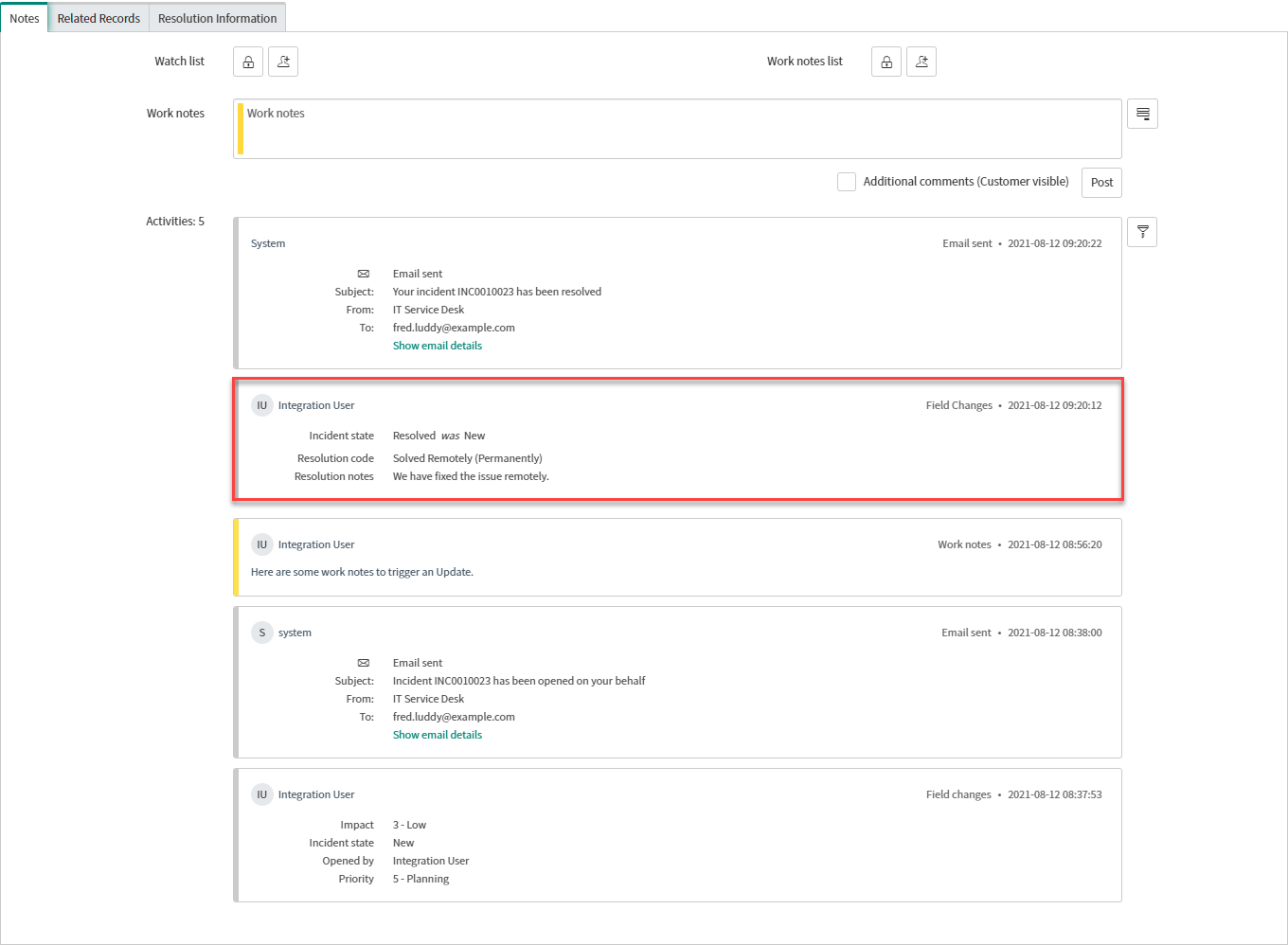

Navigate to the Notes tab to view the Activities stream:
We can see that the update has also been logged in the Activities stream.
Next, we shall test the CreateIncidentInbound Message.
