The Message we shall be configuring for our Resolve Scenario is:

1. ResolveIncident

We will define which Field records require configuring for that Message at the appropriate time.

The scenario will need to be successfully tested before we can say it is complete.

We shall look in detail at each of the Messages and their respective Fields in turn over the next few pages, before moving on to Test.

Resolve the Incident

Navigate to < Your Incident > created in the earlier test.

Update the Incident record as follows:

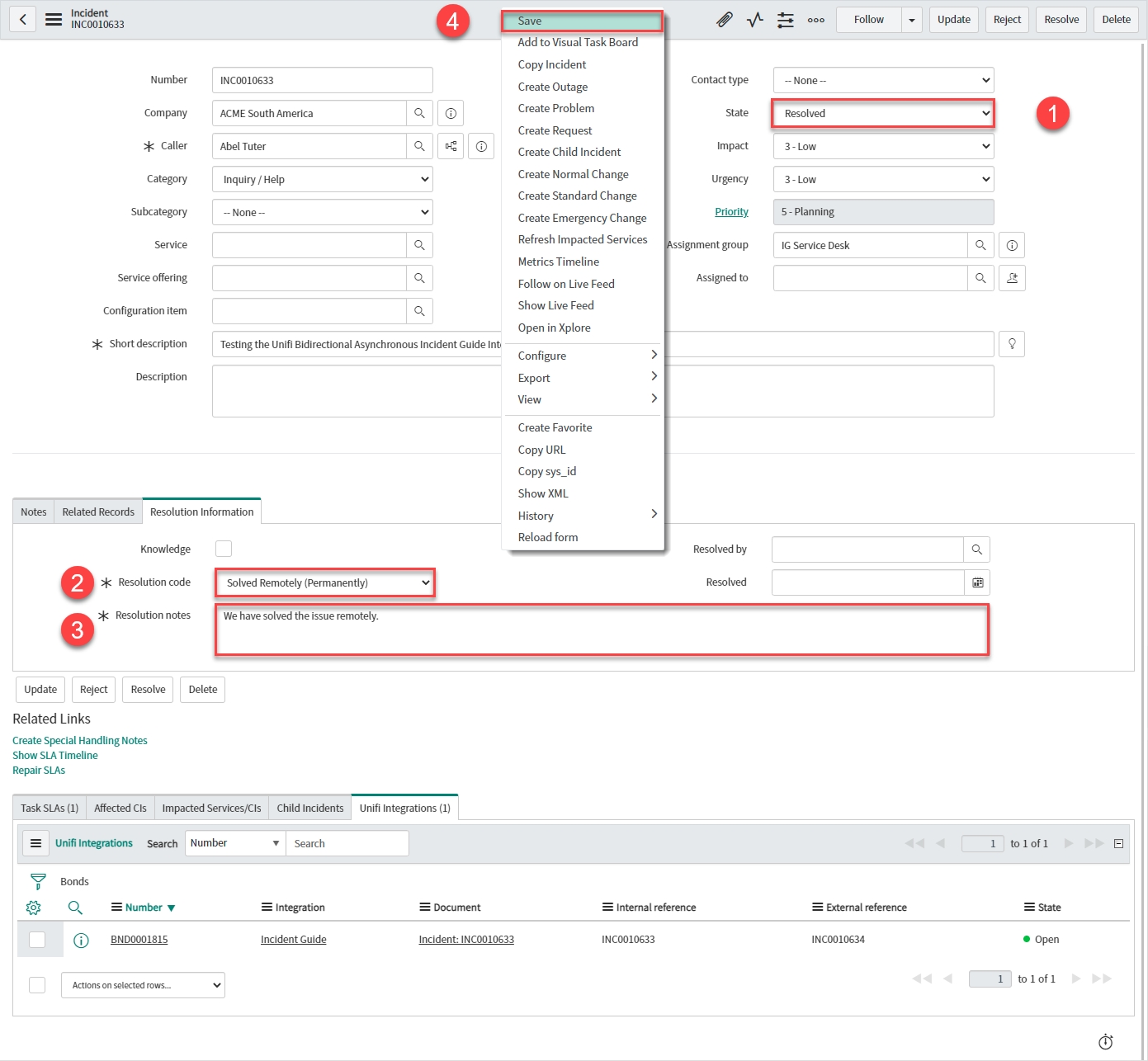

Your Incident record should look like this:

Right-click & Save.

You should see an Info Message, confirming the ResolveIncident Message is being sent to your Integration:

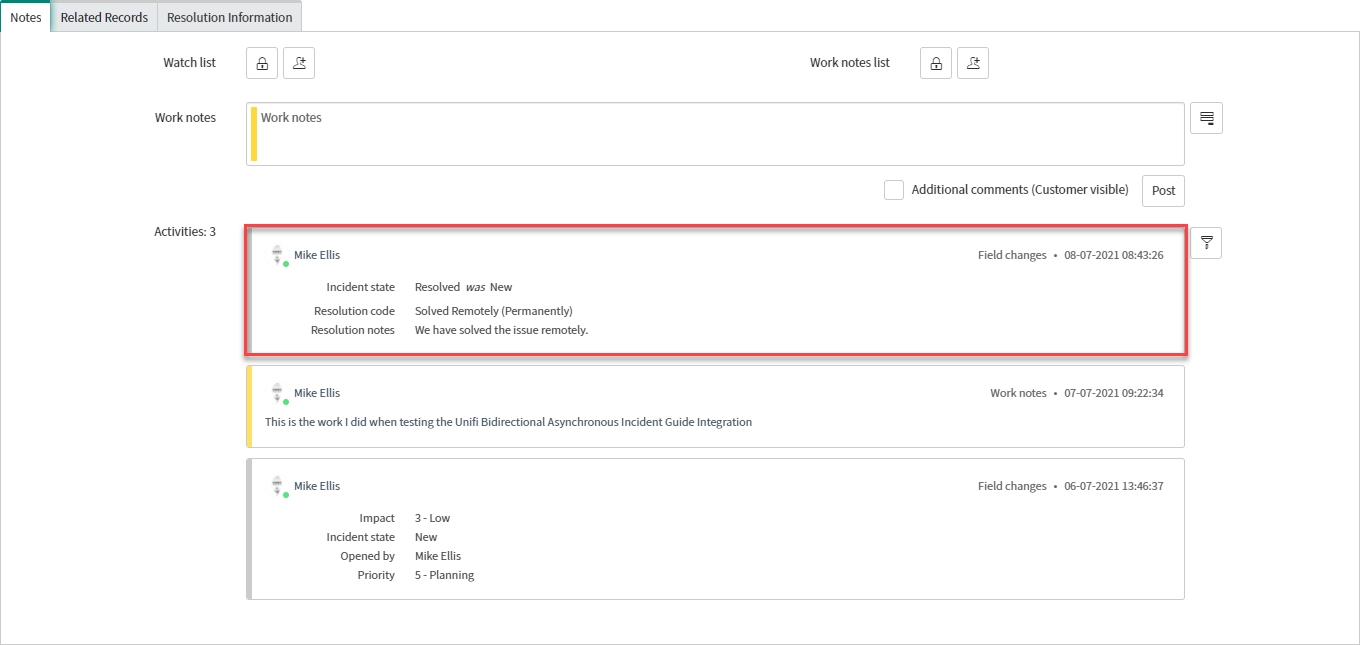

The Activities stream is updated with the details:

View the Bond

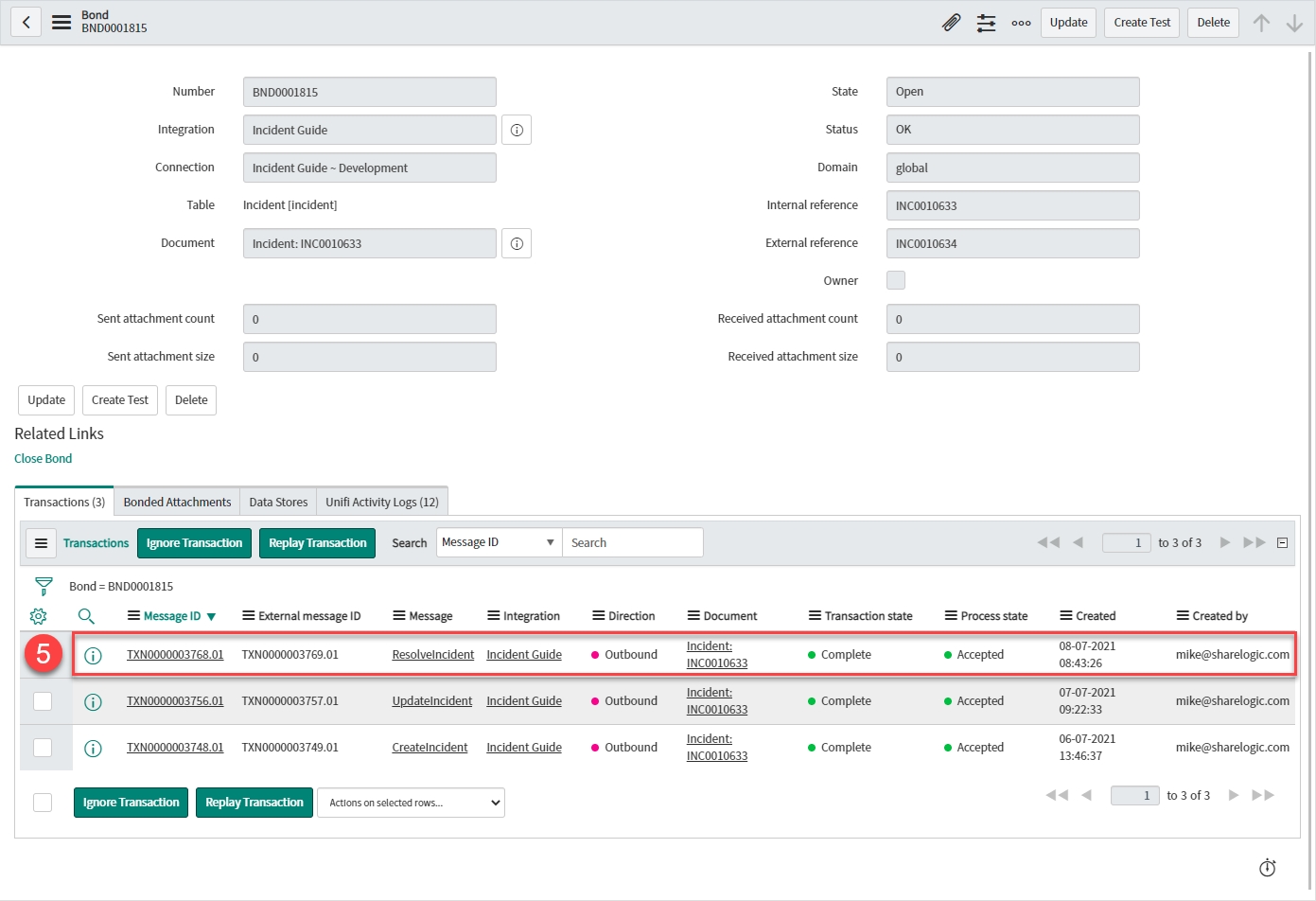

Click through to the Bond record from the related list on the Incident.

Your Bond record should have been updated as follows:

Transaction:

• Message: 'Resolveincident'

• Direction: 'Outbound'

• Transaction state: 'Complete' (The data has been successfully transported)

• Process state: 'Accepted' (The transaction was accepted as within the scope of the business logic that's in place)

View the Transaction

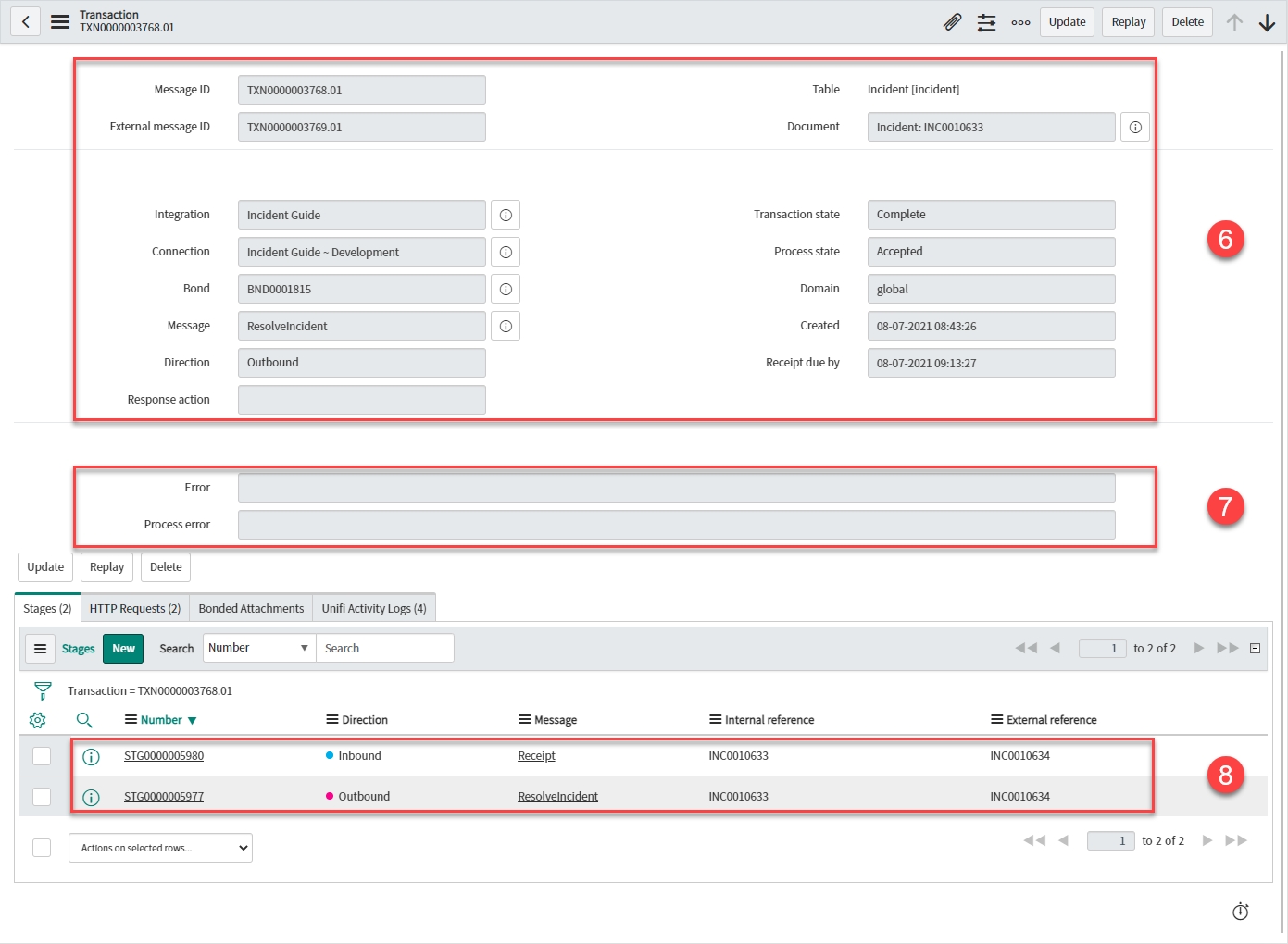

Click through to the Transaction record from the related list on the Bond.

Your Transaction record should look like this:

Transaction details:

• Table: 'Incident [incident]'

• Document: < Your Incident >

• Integration: < Your Integration >

• Connection: < Your Connection >

• Bond: < Your Bond >

• Message: 'ResolveIncident'

• Direction: 'Outbound'

• Transaction state: 'Complete' (The data has been successfully transported)

• Process state: 'Accepted' (The transaction was accepted as within the scope of the business logic that's in place)

Errors:

• Error: (If there was a transactional error the Transaction state would show as 'Error' and the details would be captured here).

• Process error: (If there was a process error the Process state would show as 'Rejected' and the details would be captured here)

Stages:

• Direction: 'Outbound' & 'Inbound'

• Message: 'ResolveIncident' & 'Receipt'

• Internal reference: < ServiceNow ticket reference > (Same as 'Document')

• External reference: < External system's ticket reference >

View the Stage

Click through to the Outbound Stage record from the related list on the Transaction. (If you wish, you could also do the same for the Inbound Stage record.)

Check the values in the fields match what you expect.

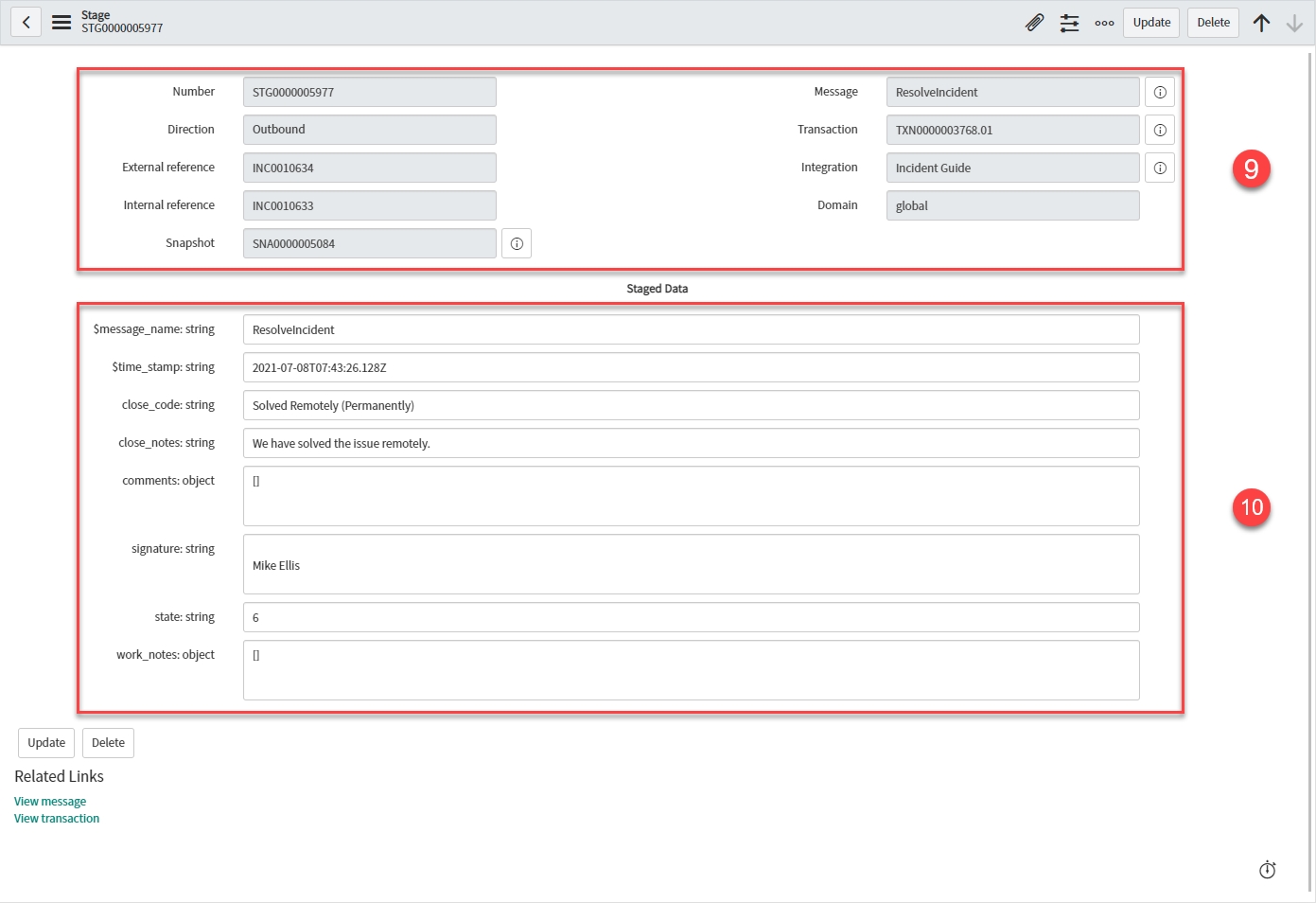

Your Stage record should look like this:

Stage details:

• Direction: 'Outbound'

• External reference: < External system's ticket reference >

• Internal reference: < ServiceNow ticket reference >

• Snapshot: < Snapshot record reference >

• Message: 'ResolveIncident'

• Transaction: < Your Transaction >

• Integration: < Your Integration >

Mapped Staged Data fields:

• close_code: < Your Resolution code >

• close_notes: < Your Resolution notes >

• state: '6'

View the HTTP Request

Click through to the Outbound HTTP Request record from the related list on the Transaction. (If you wish, you could also do the same for the Inbound HTTP Request record.)

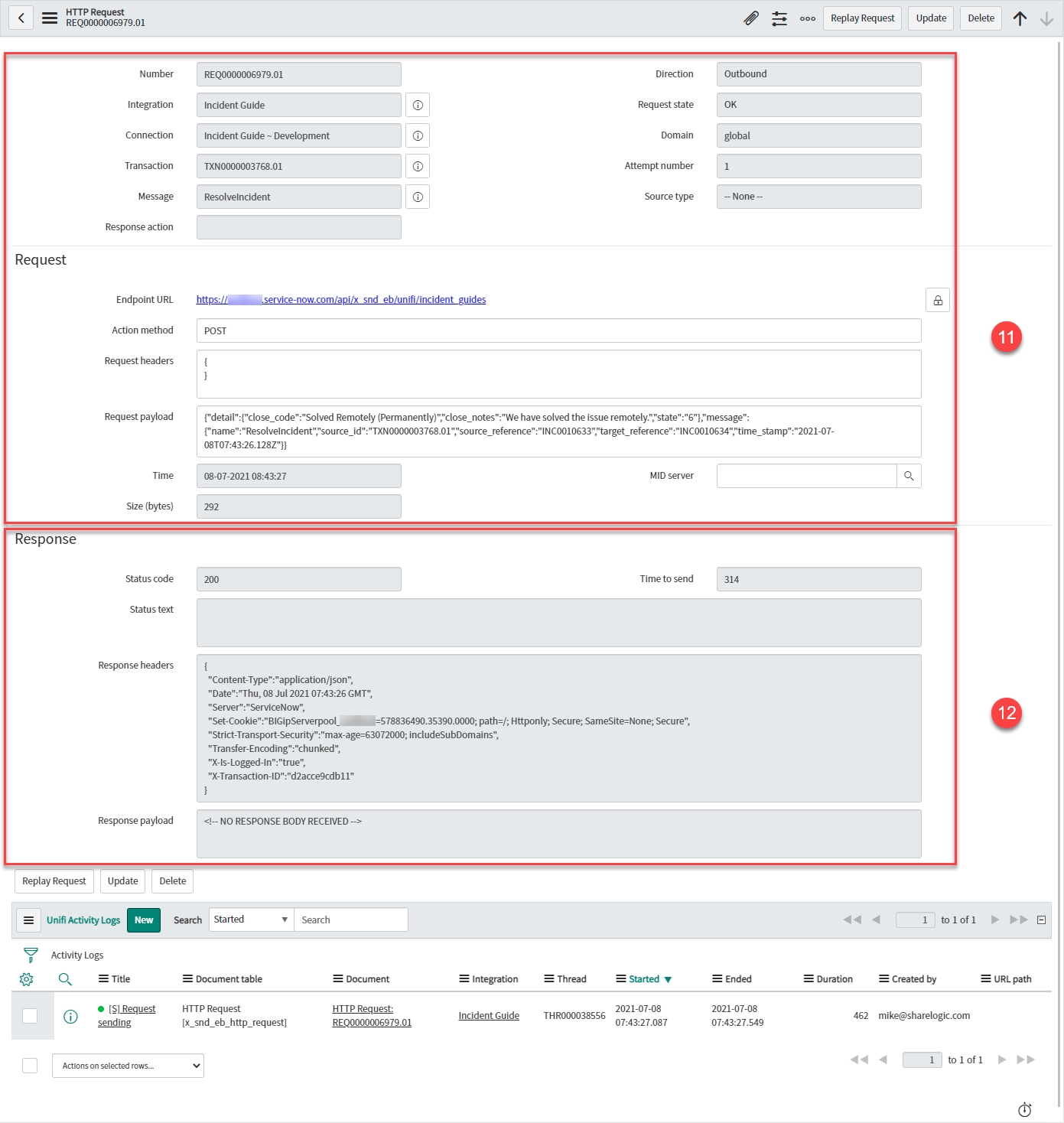

Your HTTP Request record should look like this:

HTTP Request details:

• Integration: < Your Integration >

• Connection: < Your Connection >

• Transaction: < Your Transaction >

• Message: 'ResolveIncident'

• Direction: 'Outbound'

• Request state: 'OK' (There are no errors with the HTTP Request.)

• Attempt number: < Number of HTTP Request attempts > (Failed requests are retried up to the maximum attempts number as configured on the Integration.)

• Endpoint URL: < The external system’s access URL >

• Action Method: 'POST'

• Request headers: < The header of the request being sent >

• Request payload: < The payload of the request being sent >

Response details:

• Status code: '200'

• Response headers: < The header of the response being received >

• Response payload: < The payload of the response being received >

Compare with the External System's Incident

Navigate to the corresponding Incident in the external system.

Check the values in the fields match those you noted when you saved the Incident in the internal system.

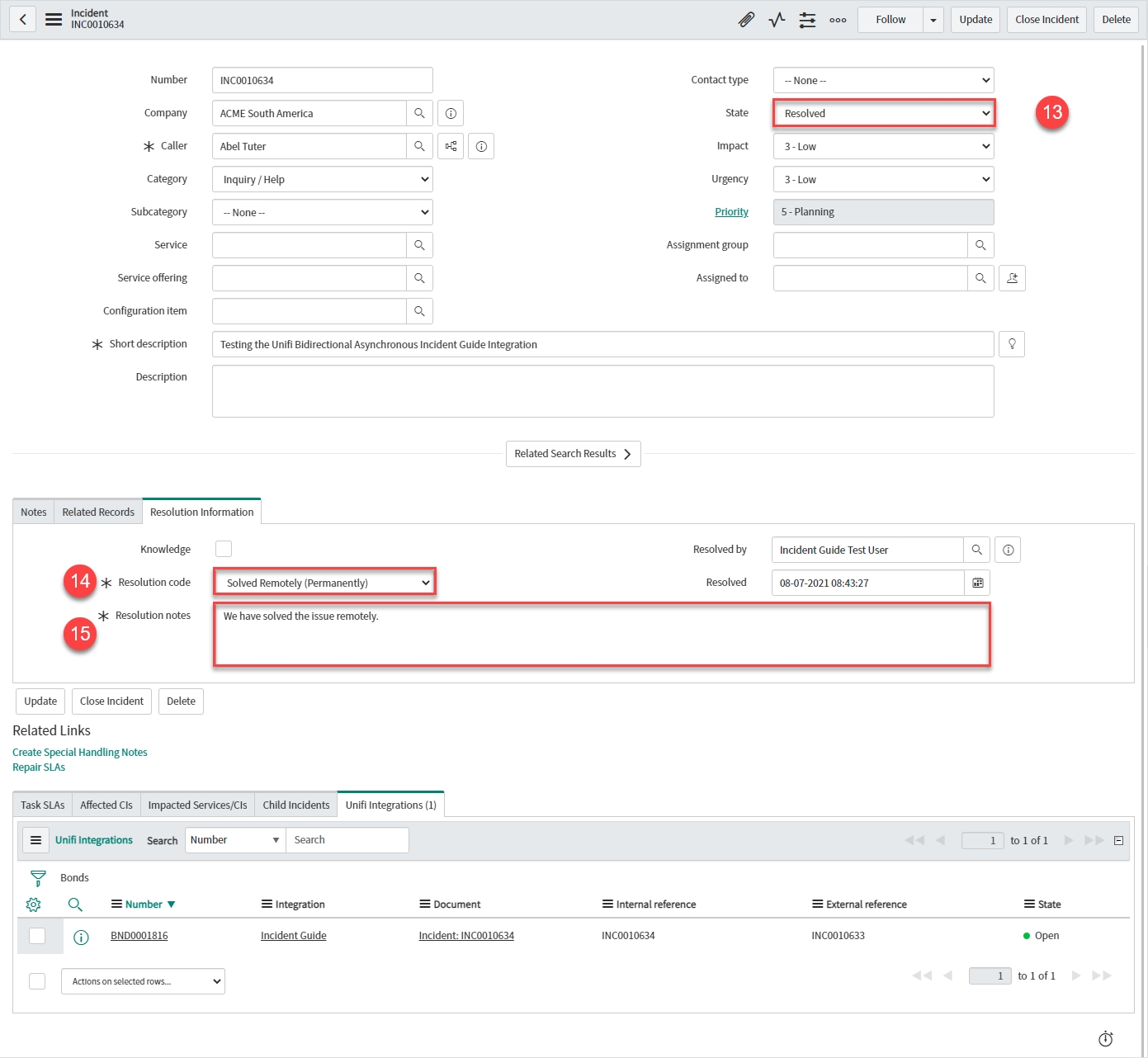

Your external system's Incident record should look like this (depending on the system you're integrating with, your record may look different; the important matter is that the values match):

State: 'Resolved'

Resolution code: < Your Resolution code >

Resolution notes: < Your Resolution notes >

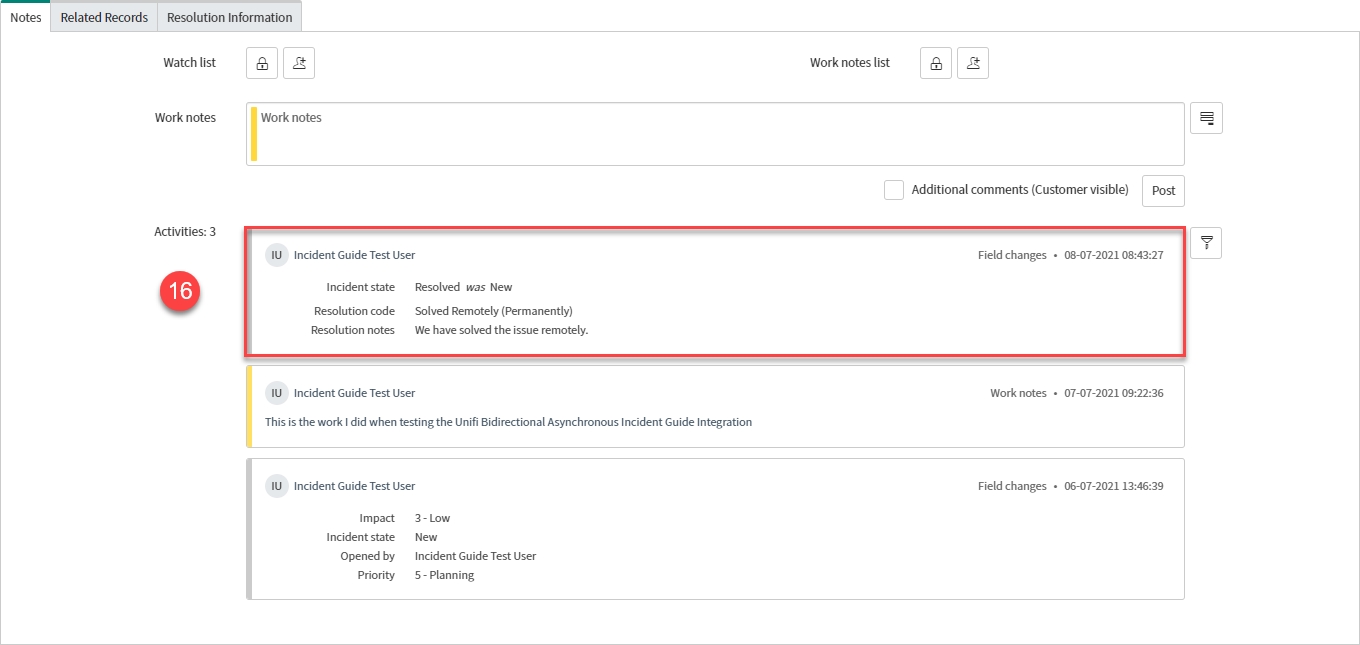

Navigate to the Notes tab.

Your Notes tab should look like this:

Activities: < Your Resolution code/notes & State > (added by < your.external.system.user >)

If you have completed this testing for the first time (sending to your own instance only), you are now ready to move on and look at running Build at the Integration level.

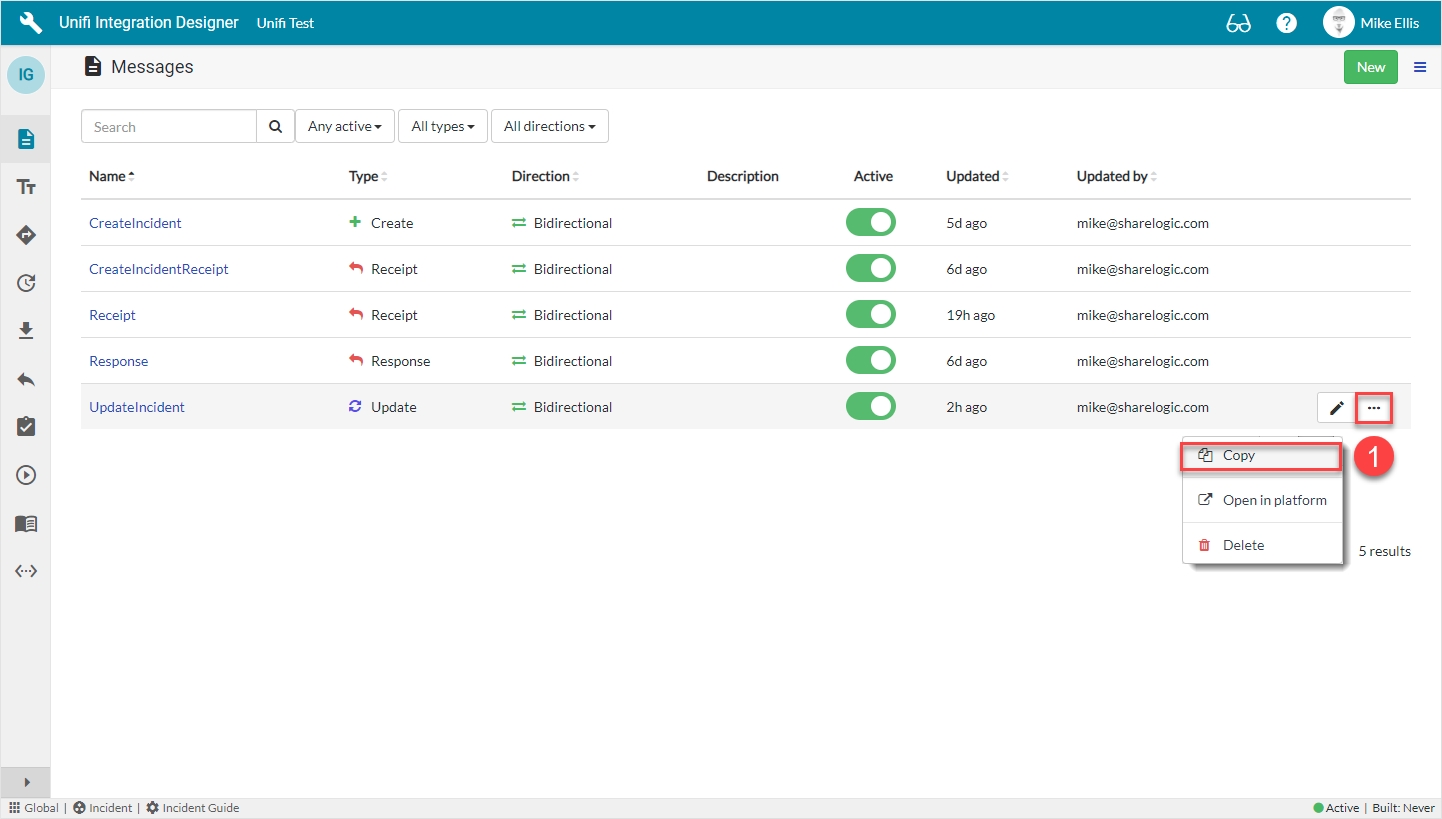

Again, after clicking the 'Messages' icon, you are directed to the following screen (note: the five previously configured messages are now visible in the list):

Click the ellipsis to the right of the UpdateIncident Message & then click Copy.

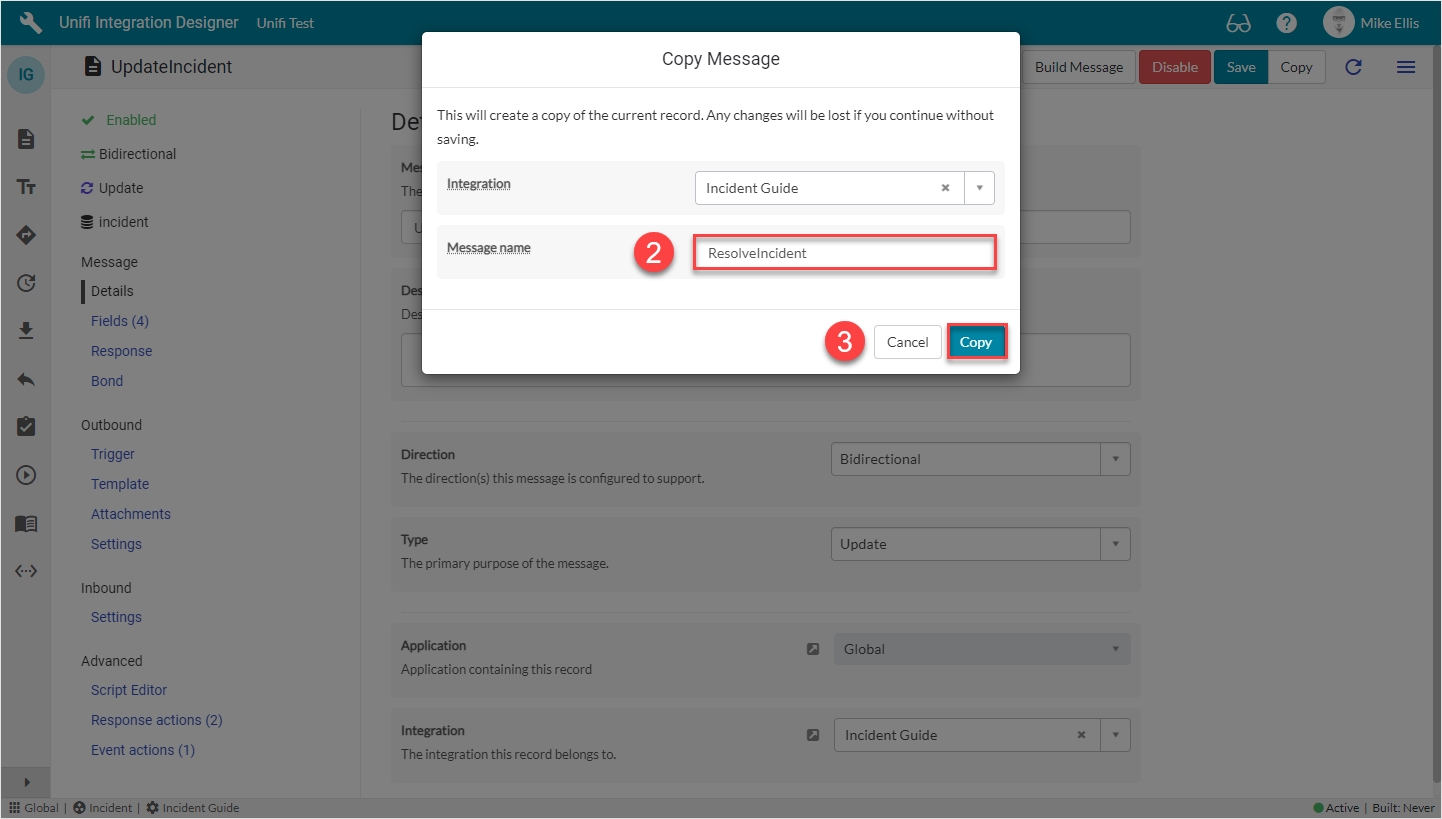

Copy Message Modal

The fields to edit for the Copy Message modal are as follows:

Your Copy Message modal should look like this:

Click Copy.

You will be redirected to the Details page of the newly created ResolveIncident Message.

Bond Fields

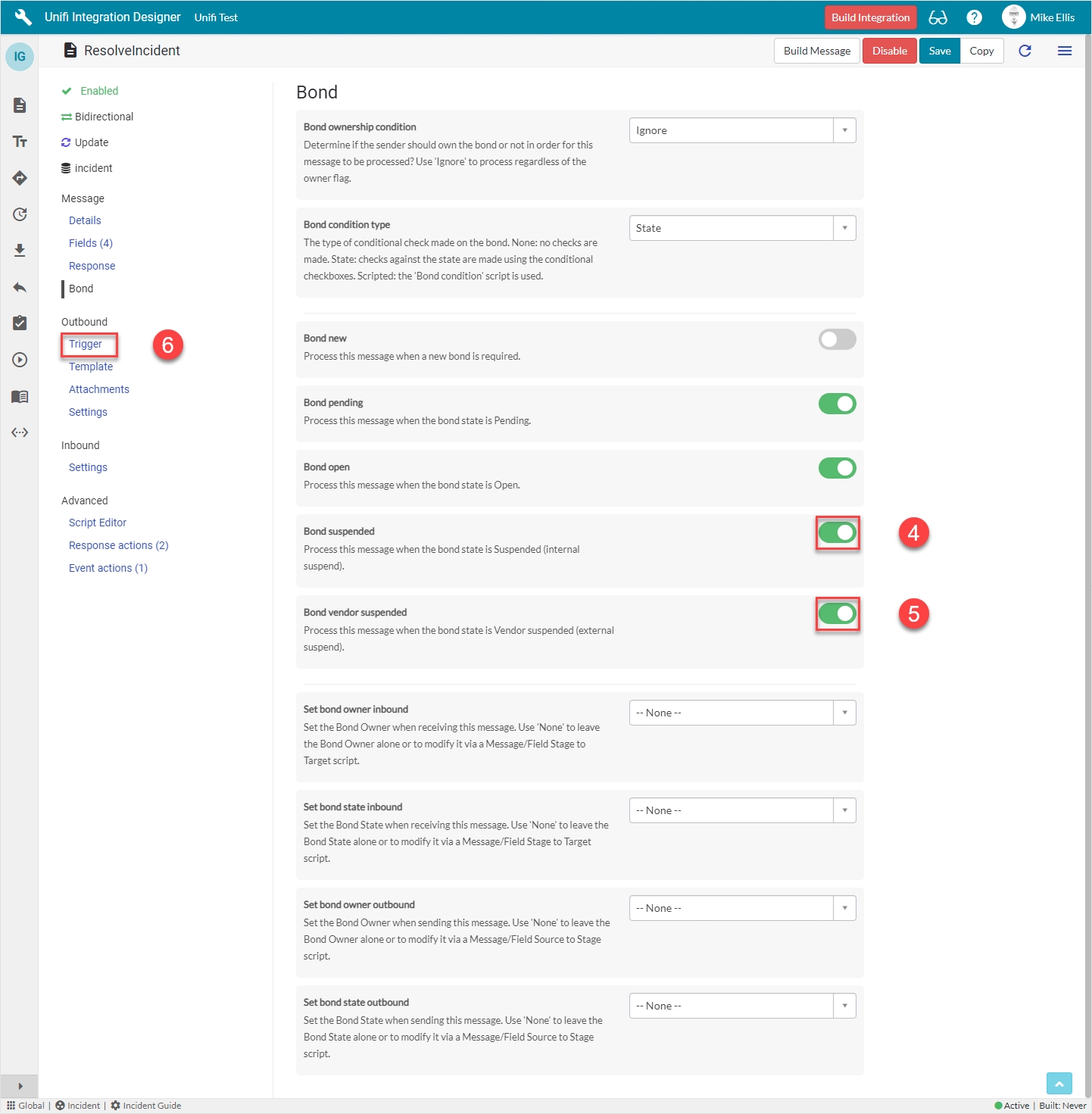

Navigate to Message > Bond.

The Bond fields to be edited are as follows:

Your Bond form should look like this:

Navigate to Outbound > Trigger.

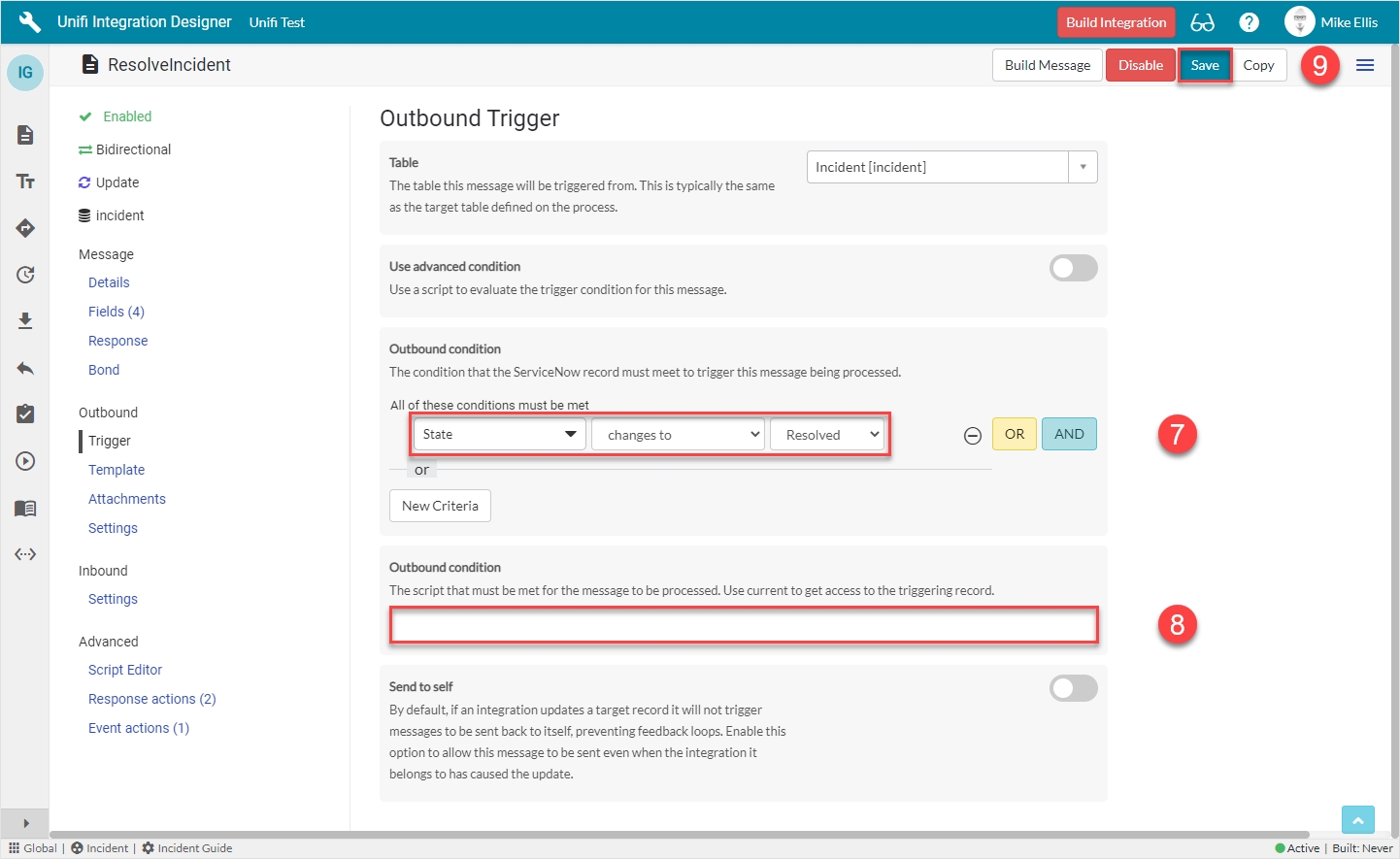

Outbound Trigger Fields

The Outbound Trigger (as required)* fields to be edited are as follows:

Your Outbound Trigger form should look like this:

Click Save.

We are now ready to configure the Fields for our ResolveIncident Message.

The 'message_header', 'incident.comments', 'incident.work_notes' and 'incident.short_description' Field records are already be in place because they were also copied when we copied the Message. We can choose to include, or exclude as many of those and the Integration level ones that are available depending on our requirements (by either activating or deactivating the relevant Fields). We have chosen not to include 'incident.short_description' in our mappings, so we'll delete that.

In Unifi Integration Designer, from the ResolveIncident Message, navigate to Message > Fields.

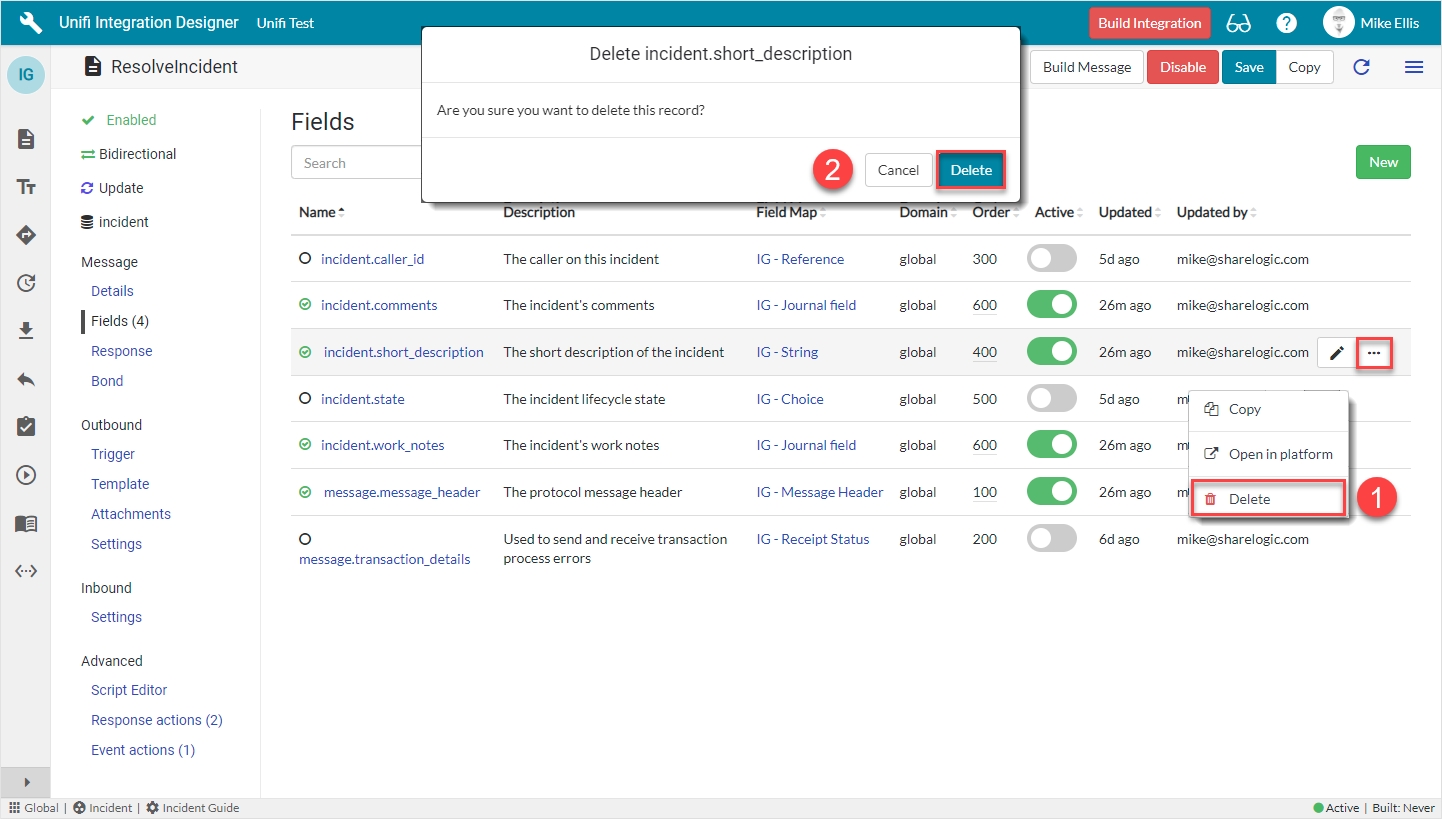

Click on the ellipsis to the right of the incident.short_description Field & click Delete.

Confirm Delete.

Field: incident.state (Message level)

The fields to be changed to configure the incident.state (Message level) Field record are as follows:

By simply setting the Active flag to true on the Integration level Field record listed on the Message, Unifi has created the Message level counterpart.

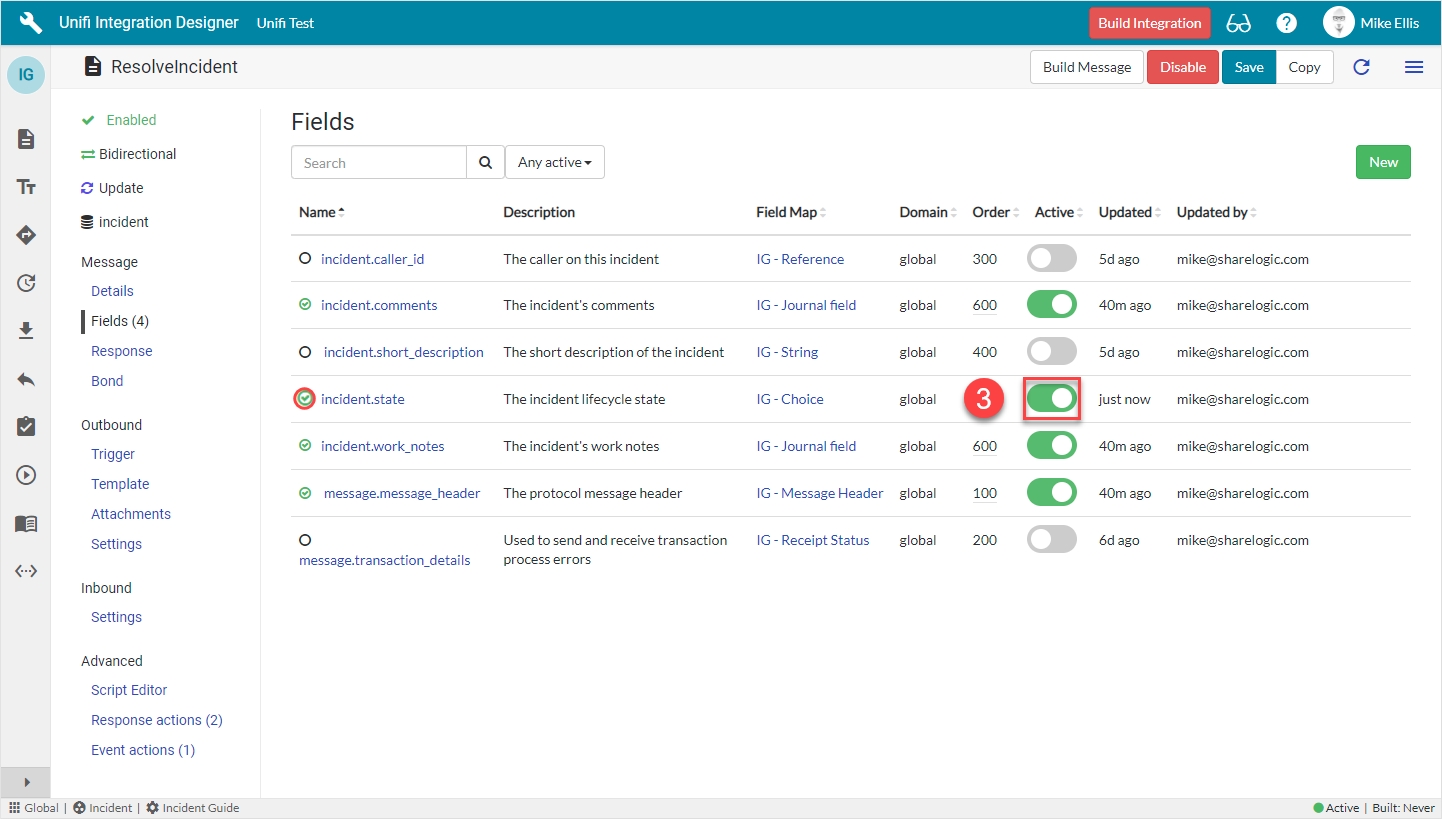

Your ResolveIncident Message Fields page should look like this:

We will now configure Field records for the two remaining Incident record field elements which are required.

Fields & Field Maps

The table below lists the Incident record field elements we will map and the relevant Field Maps required to configure each Field record.

*Field map: Values may vary (dependent on your configuration of the copies). Choose the copy Field Maps you created earlier.

Field: incident.close_code (Message level)

As with 'incident.state' the 'incident.close_code' Field record is a Choice 'type' Field. We will, therefore, configure the choices once at the Integration level. We’ll first configure the Message level Field and then move on to configure the choices on its Integration level counterpart.

From the ResolveIncident Message, navigate to Message > Fields. Click New.

The fields to be configured for our incident.close_code (Message level) New Field modal are as follows:

*These fields are automatically defaulted to true, or automatically populated.

**Field map: Value may vary. Choose the copy Field Map you created for your Integration.

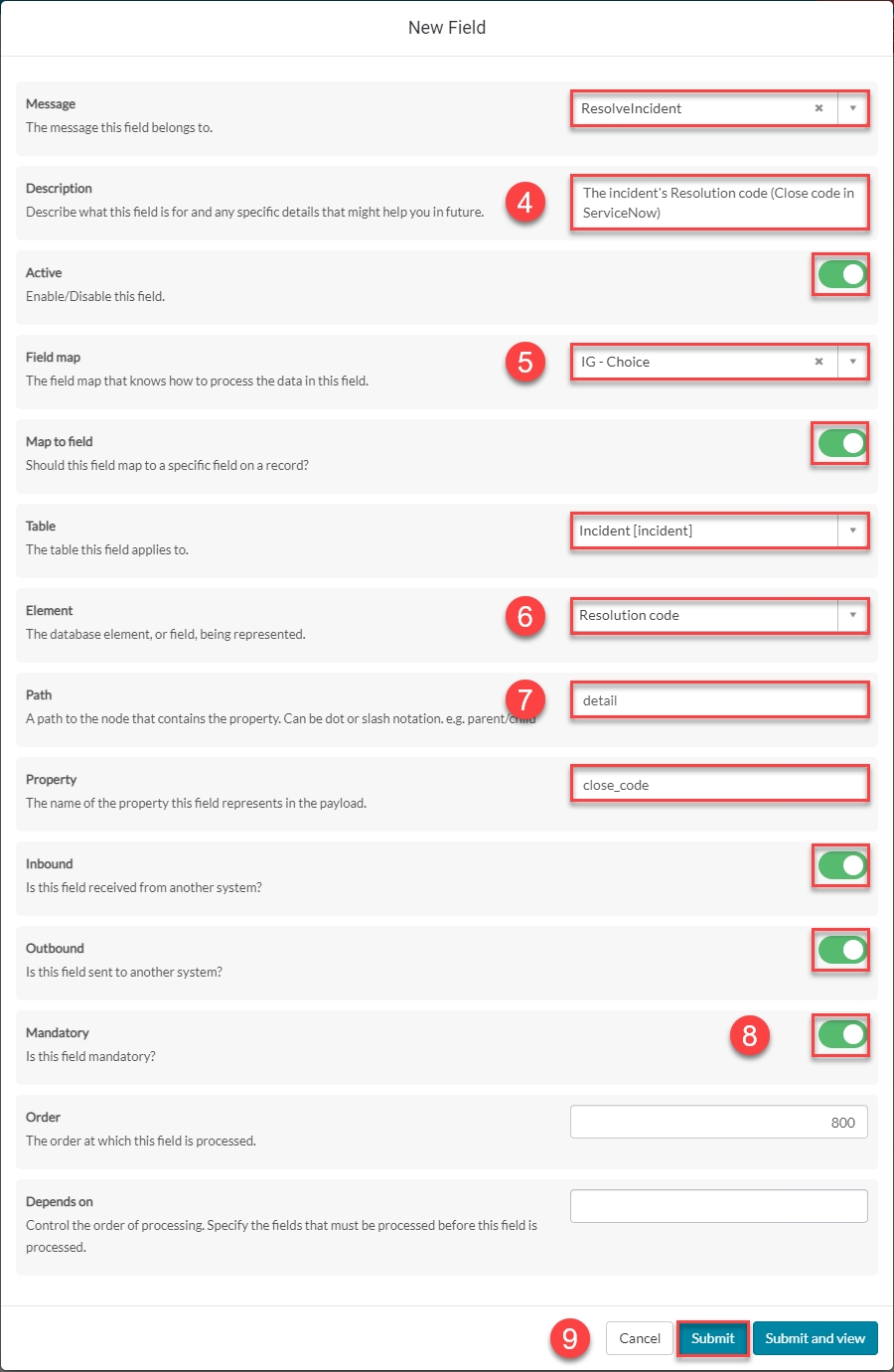

Your 'incident.close_code' (Message level) New Field modal should look like this:

Submit the record.

You will be redirected back to the Fields page of the ResolveIncident Message.

Field: incident.close_code (Integration level)

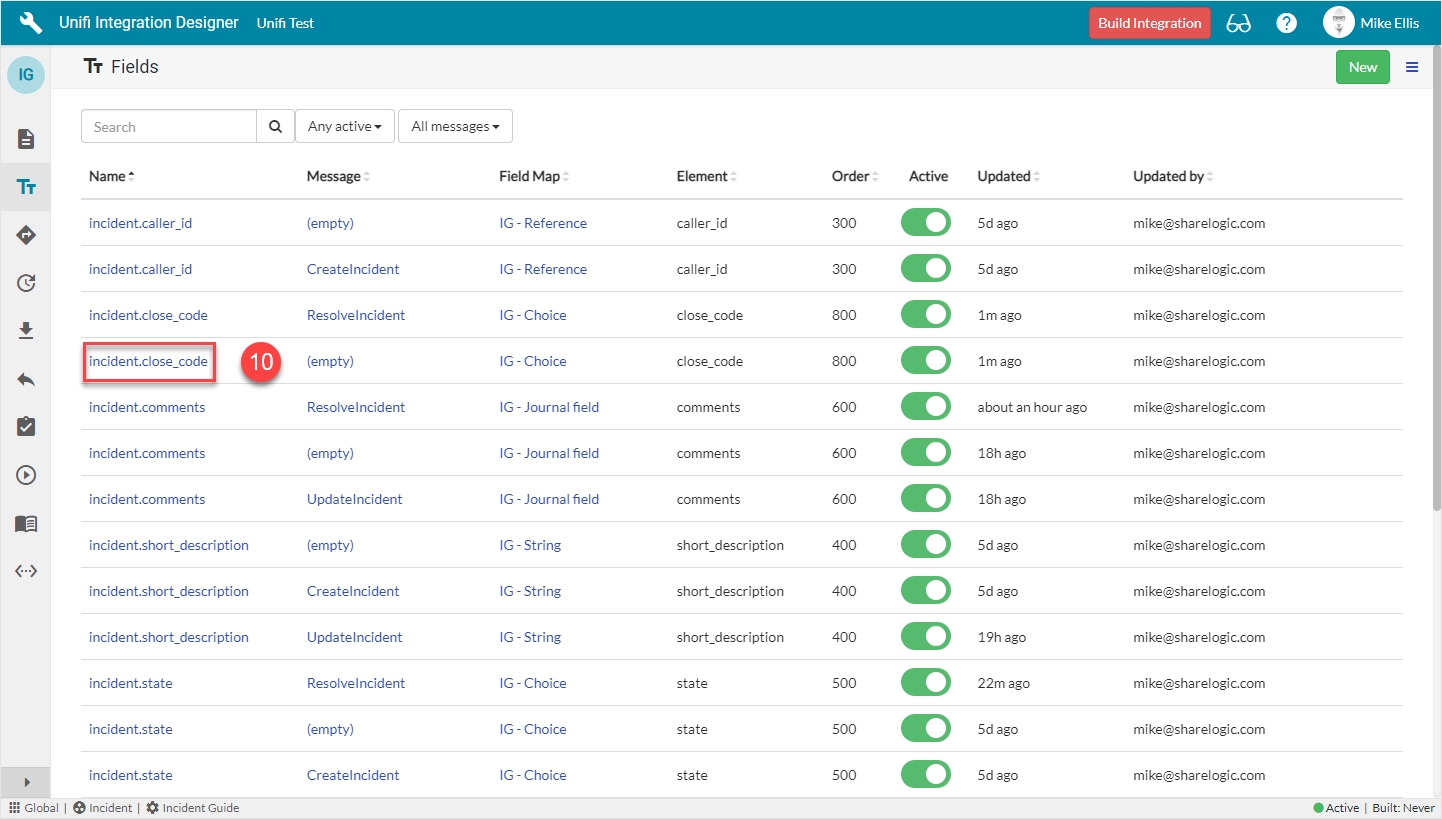

Navigate to the 'Fields' icon to open the Fields page.

Click to open the incident.close_code (Integration level) Field record (the one where Message is empty).

The incident.close_code Field record opens to the Details page.

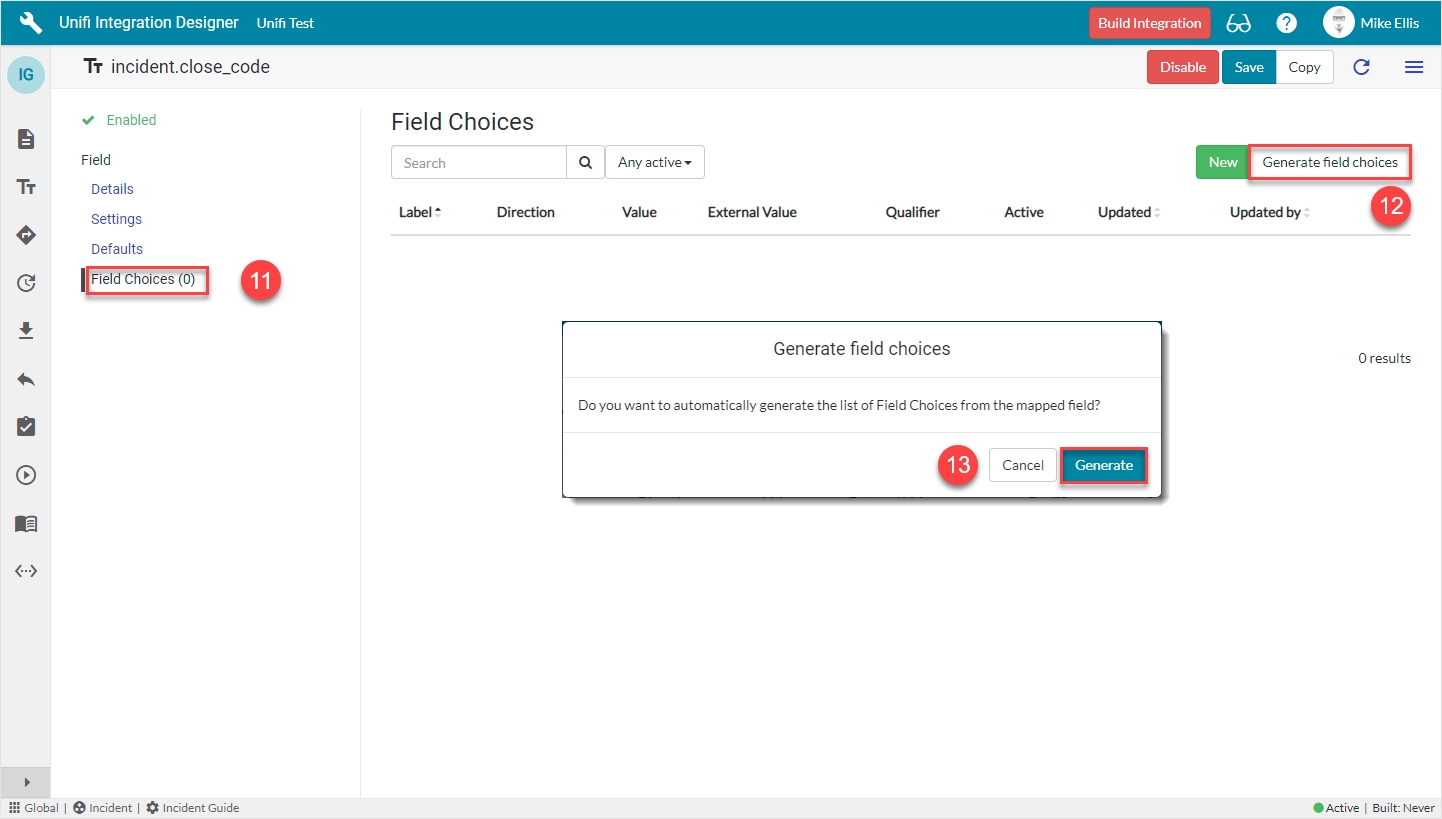

Navigate to Field > Field Choices.

Click Generate field choices.

Click Generate on the 'Generate field choices' modal which displays.

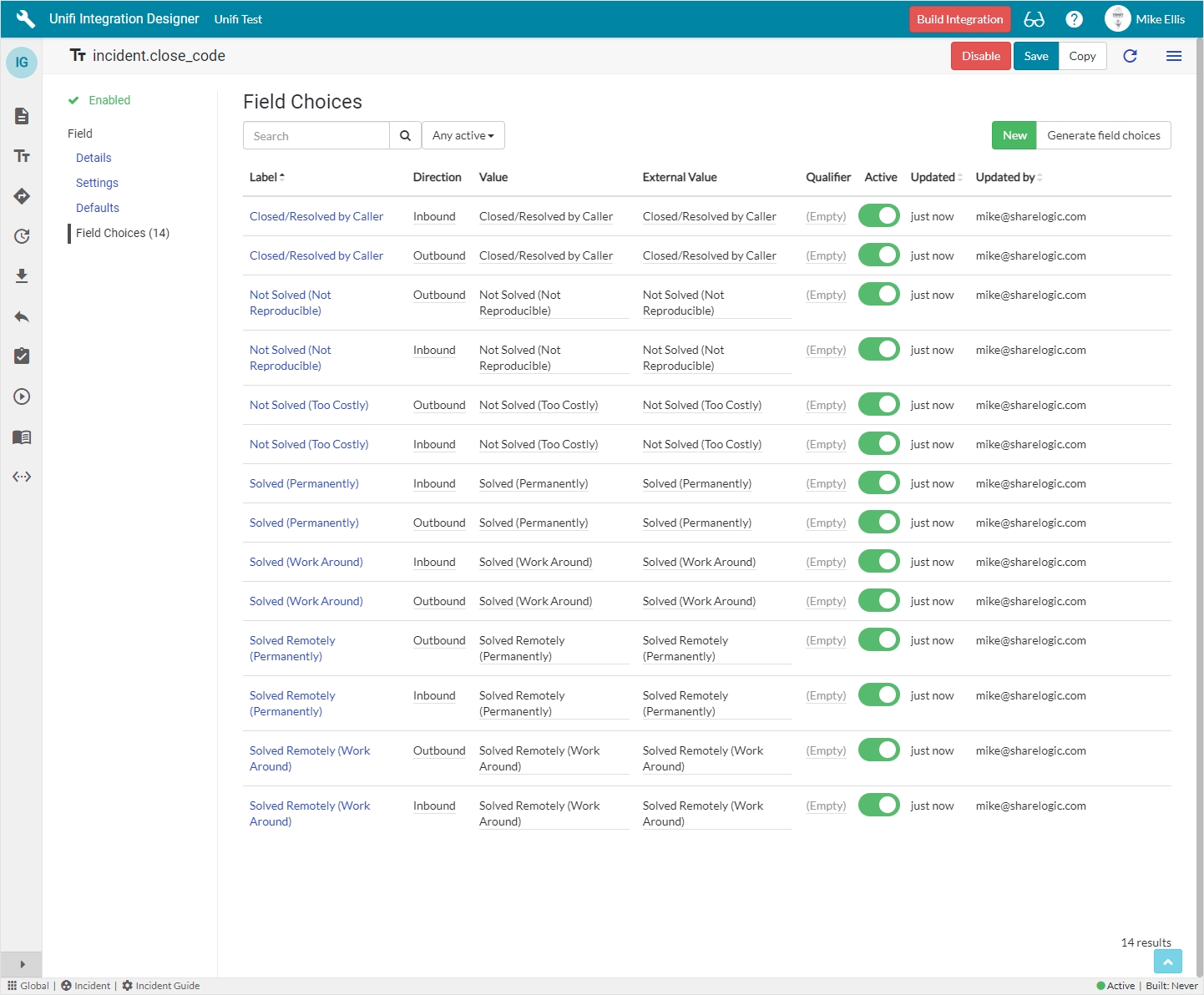

The Field Choices are generated & now visible in the list.

Field: incident.close_notes

From the ResolveIncident Message, navigate to Message > Fields. Click New.

The fields to be configured for the incident.close_notes New Field modal are as follows:

*These fields are automatically defaulted to true, or automatically populated.

**Field map: Value may vary. Choose the copy Field Map you created for your Integration.

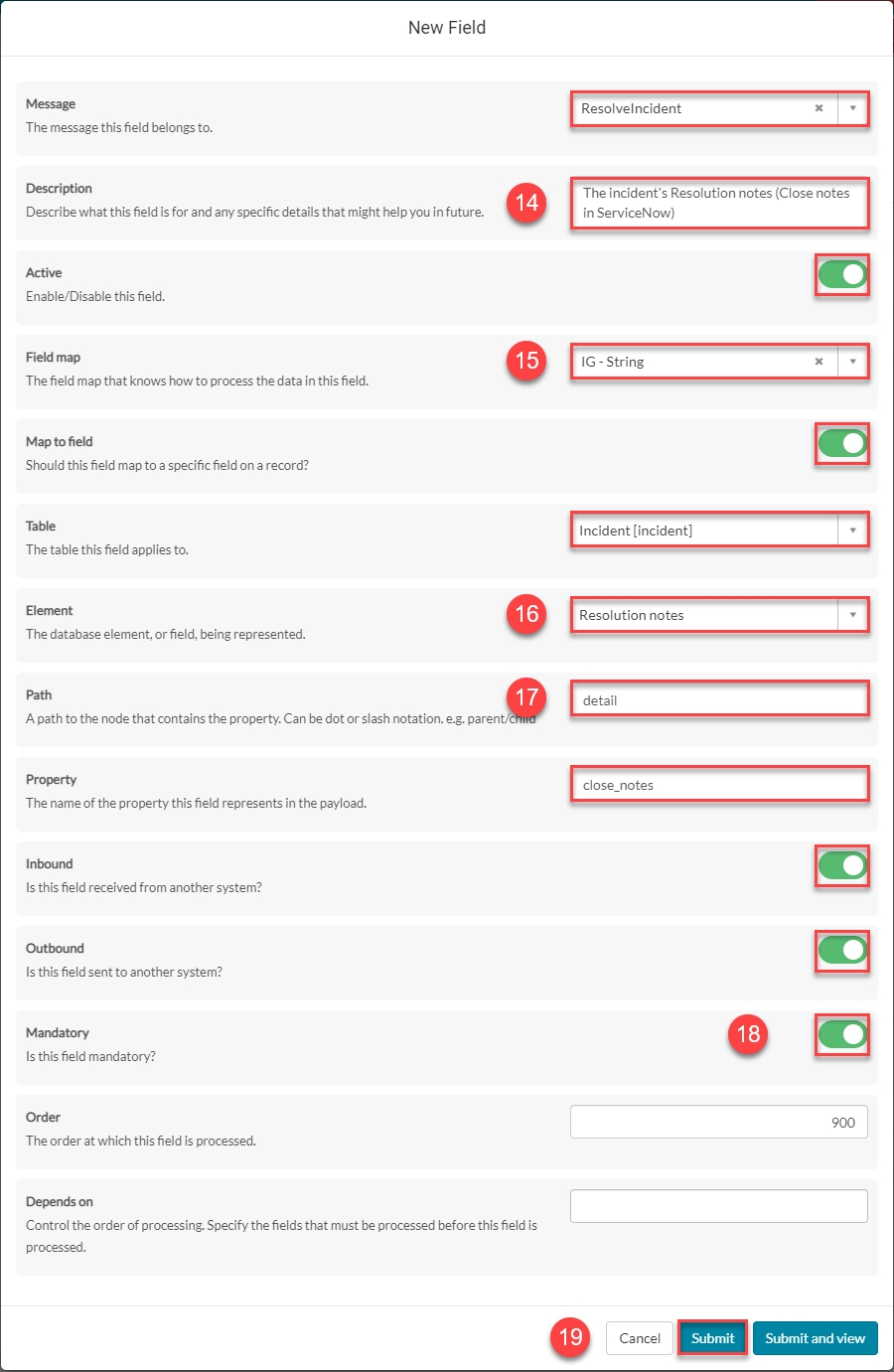

Your 'incident.close_notes' New Field modal should look like this:

Submit the record.

You will be redirected back to the Fields page of the ResolveIncident Message.

Build

Now that we’ve configured the Field records for the ResolveIncident message, we are ready to build our message scripts.

To quickly navigate to the ResolveIncident message from the Details page of the newly created incident.close_notes Field record…

...click the 'Preview' icon to the left of the Message field.

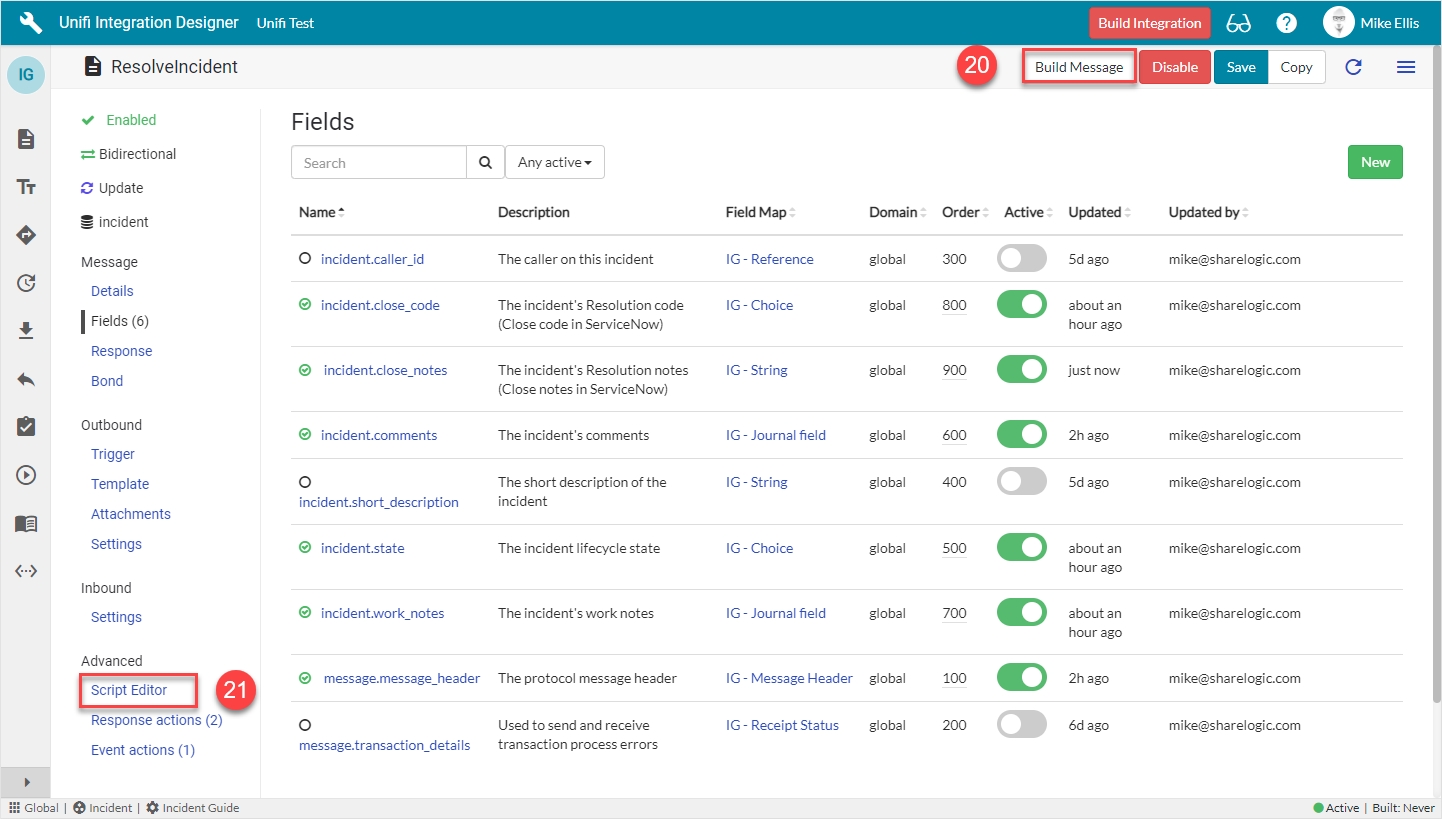

From the ResolveIncident message, navigate to Message > Fields.

The following Field records should now be in place for your ResolveIncident messsage:

Click on Build Message.

You will see the 'Message build successful' Info Message.

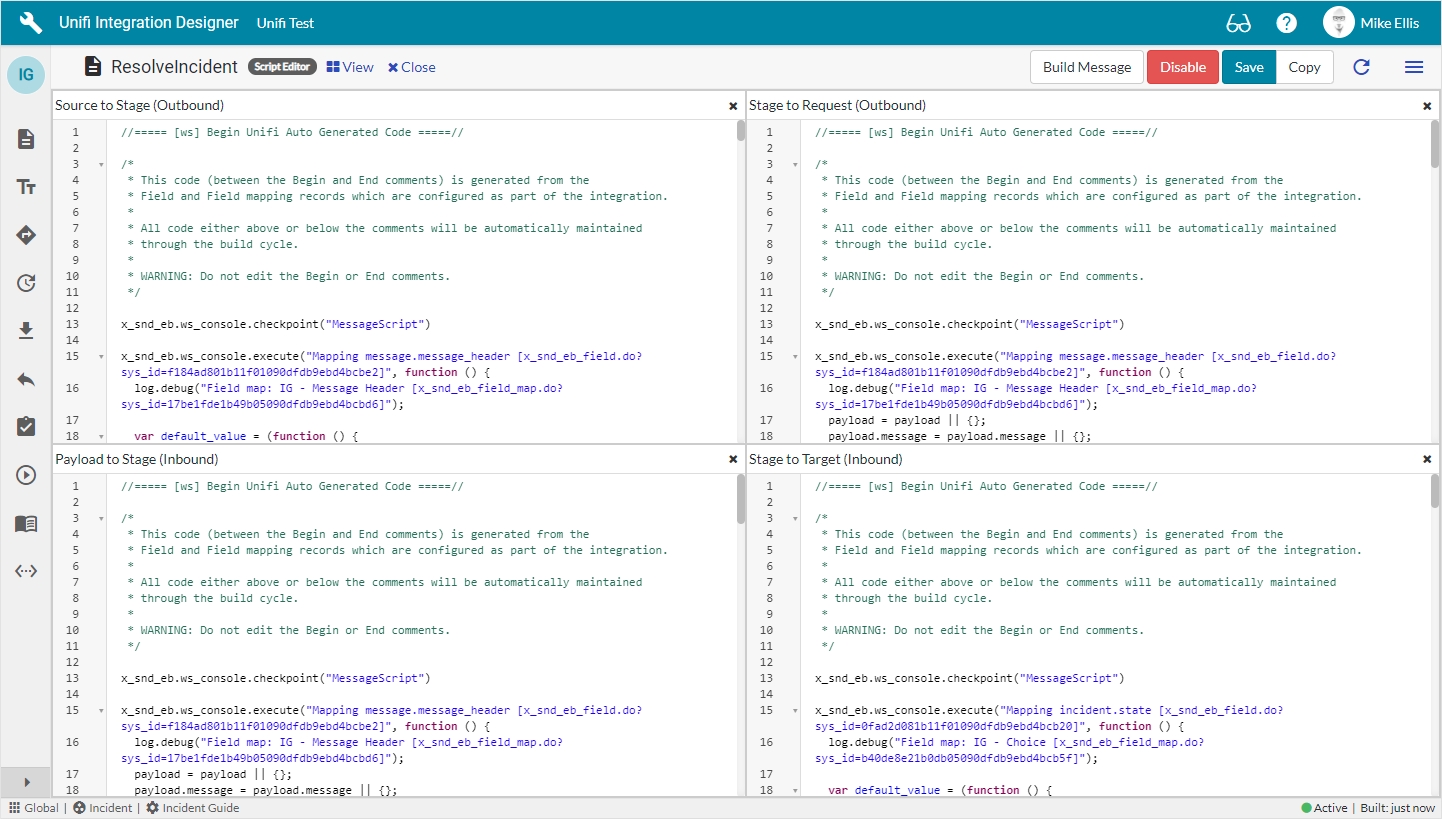

Navigate to Advanced > Script Editor to view the auto-generated code.

Your Script Editor fields should look like this:

Message Scripts

//===== [ws] Begin Unifi Auto Generated Code =====//

/*
 * This code (between the Begin and End comments) is generated from the
 * Field and Field mapping records which are configured as part of the integration.
 *
 * All code either above or below the comments will be automatically maintained
 * through the build cycle.
 *
 * WARNING: Do not edit the Begin or End comments.
 */

(New auto-generated code will appear here)

//===== [ws] End Unifi Auto Generated Code =====//

(Old pre-existing code will appear here)

We are now ready to Test our ResolveIncident Message.
