Poll Processor
The Poll Processor contains the logic that will be applied when polling a remote system for data.
The Poll Processor is a configuration record which contains the logic that will be applied when polling a remote system for data. There are three main scripts which are used to setup, execute and process the Poll Requests. The scripts given here are examples of how you might configure your Poll. The details of yours may differ depending on your requirements.
New Poll Processor
In Unifi Integration Designer, click the 'Poll Processors' icon & then New.
The fields to be configured for the New Poll Processor modal are as follows:
Name
The name of the Processor.
<Your Name>

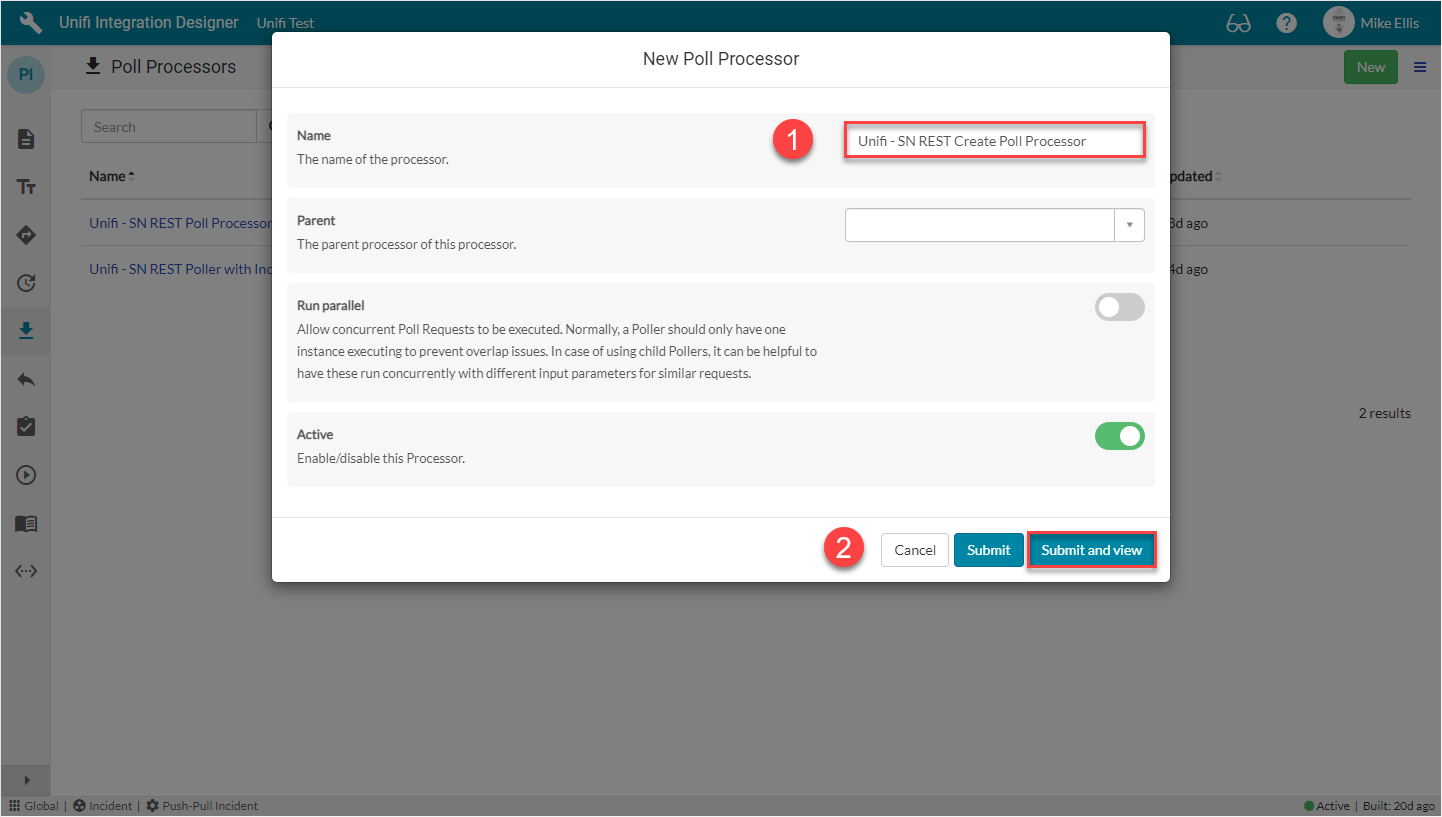

Your New Poll Processor modal should look like this:

Submit and view to further configure the Poll Processor.
Setup Script
The Setup Script is the first script to run (it runs at the point in time the Poll Request is created). It is used to build the environment for the poll and define what it will do. We will use it to setup the URL that will be called.
Navigate to Scripts > Setup Script.
The Setup script field is to be configured as follows:
Setup script
The script to setup the Poll Request record.
Update the code in the Setup script field so that it looks like the code below
The code in the Setup script field should look like this:
// Configure the new Poll Request record
(function(poll_request, poller, params) {
var gdt = new GlideDateTime();
gdt.addSeconds(-1800);
var connection = poller.getIntegration().getActiveConnection();
var cvar = connection.getVariables();
var user = connection.getBasicAuthUser();
var time = connection.getData('last_update_time', (gdt + ''));
var group = cvar.external_group + ''; //Poller Integration Support
var fields = cvar.base_fields + ',' + cvar.data_fields;
var query = [
'active=true',
'correlation_idISEMPTY',
'assignment_group=' + group,
'sys_updated_by!=' + user,
'sys_updated_on>' + time,
'ORDERBYsys_updated_on'
];
var uri_query = query.map(function(c) {
return encodeURIComponent(c);
}).join('%5E');
poll_request.endpoint_url += '/table/incident?sysparm_query=' + uri_query +
'&sysparm_fields=' + encodeURIComponent(fields) + '&sysparm_display_value=true' + '&sysparm_limit=10';
})(poll_request, poller, params);

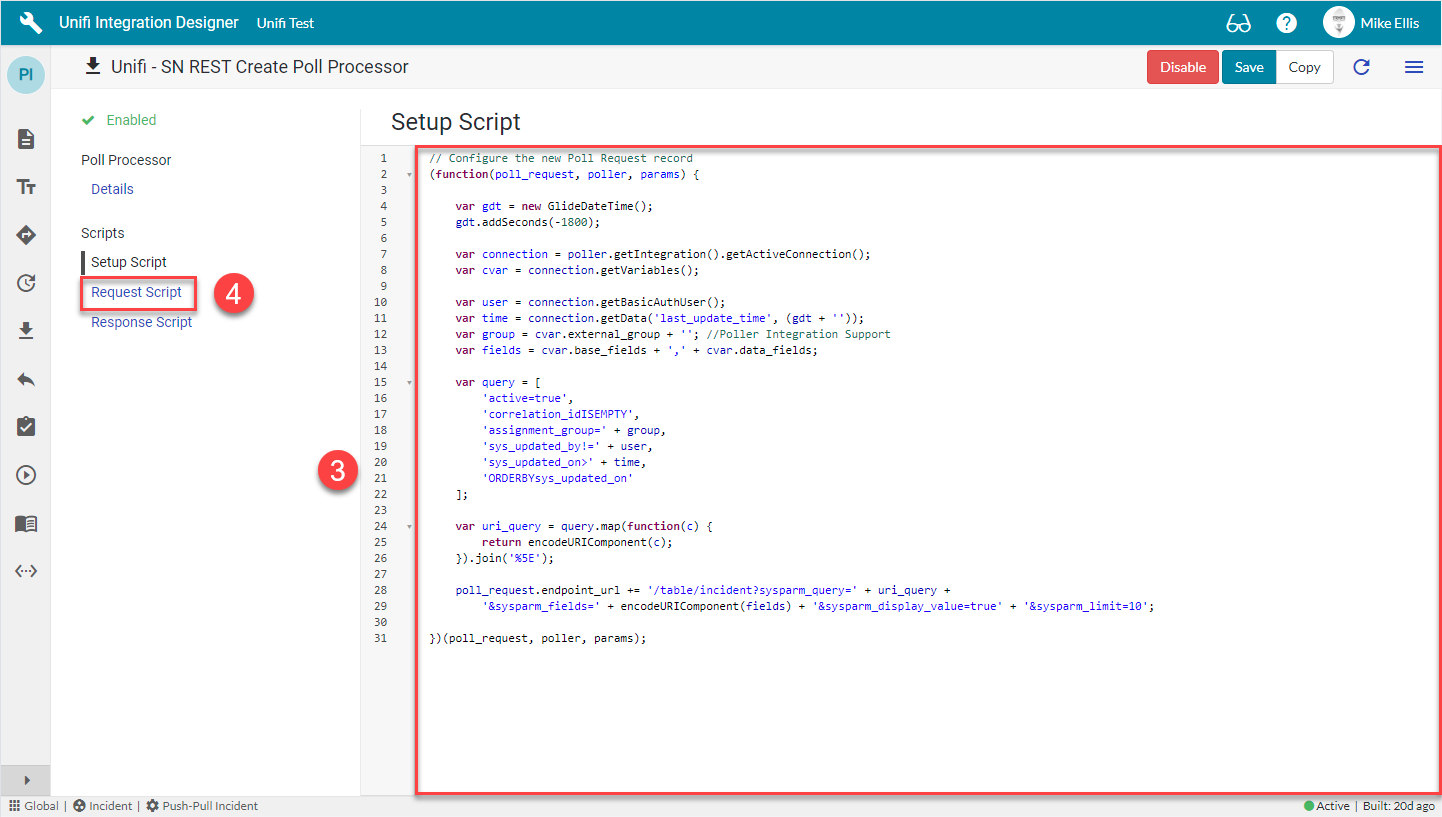

Your Setup Script form should look like this:

Navigate to Request Script.
Request Script
The Request Script is used to reach into the remote system and execute the request. We will use the ServiceNow RESTMessageV2() web service to make a REST call to the URL defined in the Setup Script.
The Request script field is to be configured as follows:
Request script
The script that executes the request.
Update the code in the Request script field so that it looks like the code below
The code in the Request script field should look like this:
// Process the request e.g. by executing a web service and returning the response
(function(poll_request, poller, connection, params) {
var rm = new sn_ws.RESTMessageV2();
rm.setEndpoint(poll_request.endpoint_url);
rm.setHttpMethod('GET');
rm.setRequestHeader('Accept', 'application/json');
rm.setRequestHeader('Content-type', 'application/json');
rm.setBasicAuth(connection.getBasicAuthUser(), connection.getBasicAuthPassword());
// rm.setRequestBody(JSON.stringify(body));
var resp = rm.execute();
answer = resp.getBody() + '';
})(poll_request, poller, connection, params);

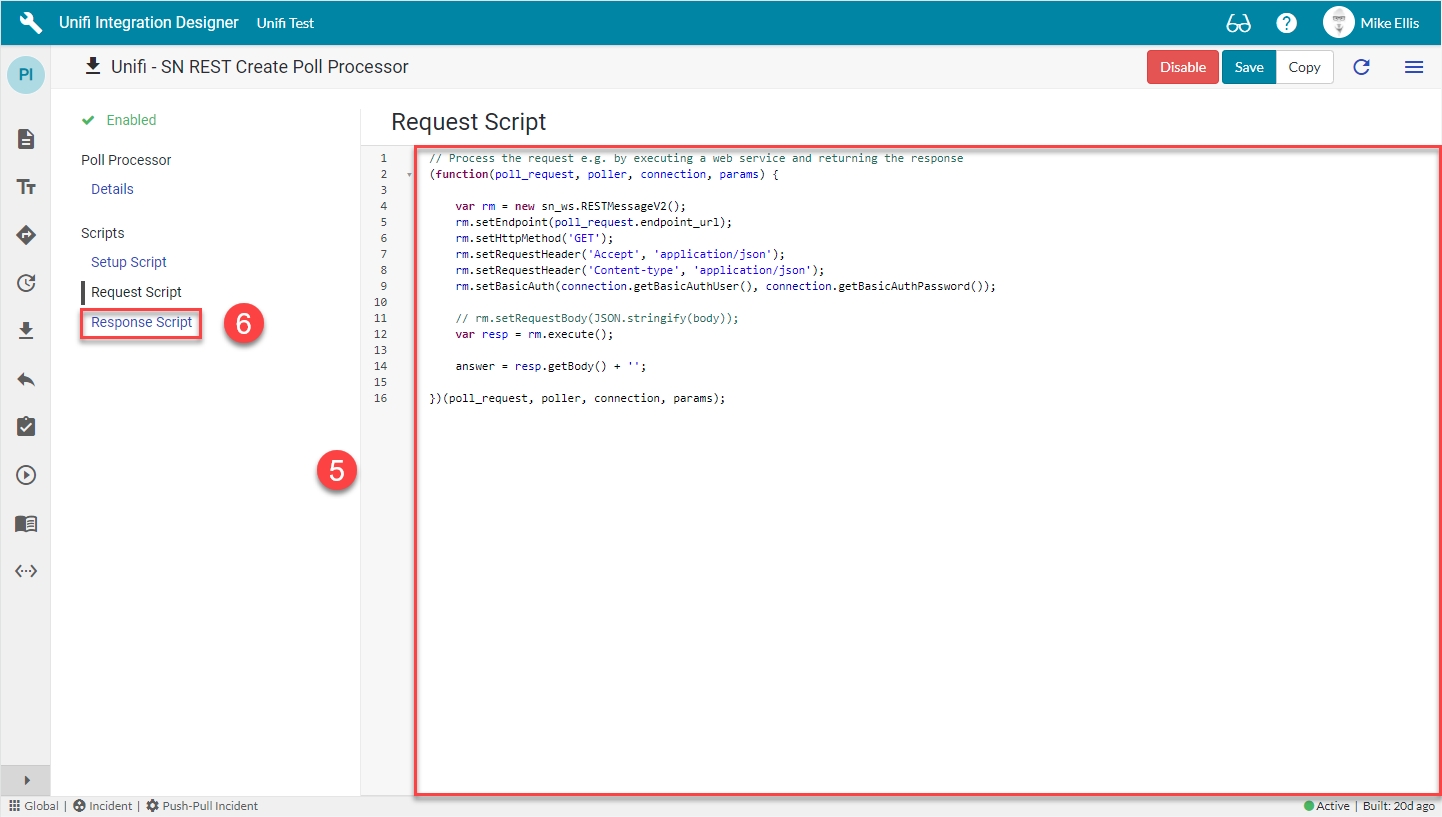

Your Request Script form should look like this:

Navigate to Response Script.
Response Script
The Response Script is used to process the information returned from the remote system. We will pass this data to Unifi to process.
The Response script field is to be configured as follows:
Response script
The script that processes the response to the request.
Update the code in the Response script field so that it looks like the code below
The code in the Response script field should look like this:
// Process the response returned by the request script
// The 'answer' variable from the request script is passed in here as the 'response' parameter
(function(poll_request, poller, response, params) {
var body = JSON.parse(response);
// Process the result
var conn = poller.getIntegration().getActiveConnection();
var cvars = conn.getVariables();
var poll_helper = new x_snd_eb.PollHelper(poll_request);
var info = [];
if (body.result.length == 0) {
status = 'No Incident found';
poll_request.response_status = status + '\n\n' + JSON.stringify(body, null, 2);
return;
}
body.result.forEach(function(inc) {
// Set up the payload object
var pl = {
message: {
name: 'CreateIncidentInbound',
source_reference: inc.sys_id
},
detail: {
caller_id: inc.caller_id,
short_description: inc.short_description,
description: inc.description,
state: inc.state,
impact: inc.impact,
urgency: inc.urgency
}
};
// Set up the options object for message submission
var opts = {
//message_name: 'CreateIncidentInbound',
payload: JSON.stringify(pl)
};
poll_helper.processInbound(opts);
var inc_time = inc.sys_updated_on;
info.push('Incident : ' + inc.number + ' (' + inc_time + ')');
// Set last update time (if later)
var conn_time = conn.getData('last_update_time', "");
info.push('Conn Time : ' + conn_time);
if (inc_time > conn_time) {
conn.setData('last_update_time', inc_time);
}
});
poll_request.response_status = info.join('\n') + '\n\n' + JSON.stringify(body, null, 2);
})(poll_request, poller, response, params);

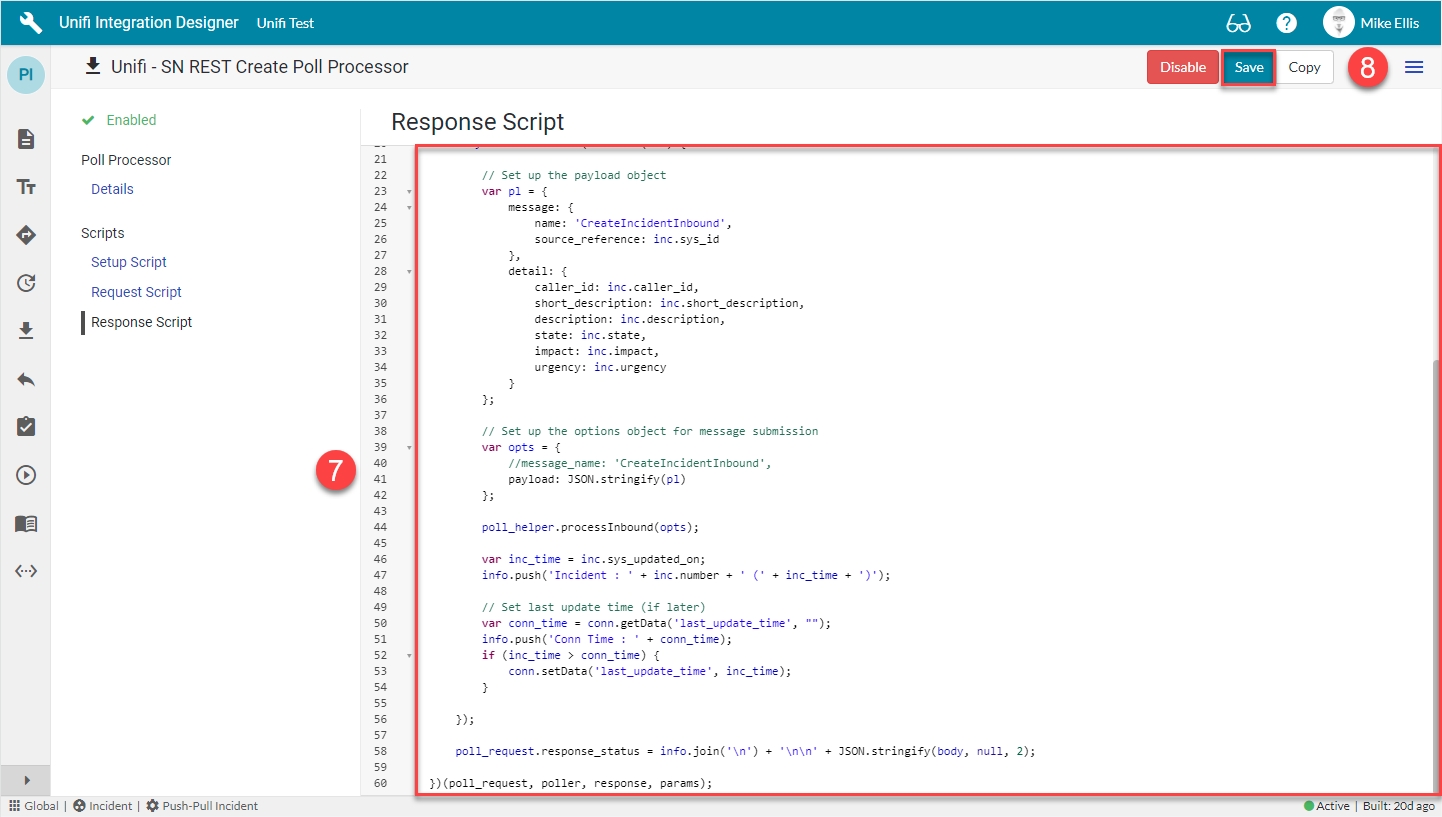

Your Response Script form should look like this:

Save the Poll Processor.
Now let's move on and configure the Poller.
