# Integration

## New Integration

Back in the **Unifi Integration Designer** window, after clicking either on the '**+**' **tile** or '**New Integration**', you are given a 'New Integration' modal to complete.

The fields to be configured for the New Integration modal are as follows:

| Field            | Description                                                                                                 | Value        |
| ---------------- | ----------------------------------------------------------------------------------------------------------- | ------------ |
| Name             | The name of the integration.                                                                                | \<Your Name> |
| Service type\*   | The type of web service this integration is using *(Choices: SOAP/REST)*.                                   | 'REST'       |
| Message format\* | Automatically pre-process incoming messages for simpler message scripting. *(Choices: XML, JSON, Advanced)* | 'JSON'       |

{% hint style="info" %}
\*Service type/Message format: these values are defaulted.
{% endhint %}

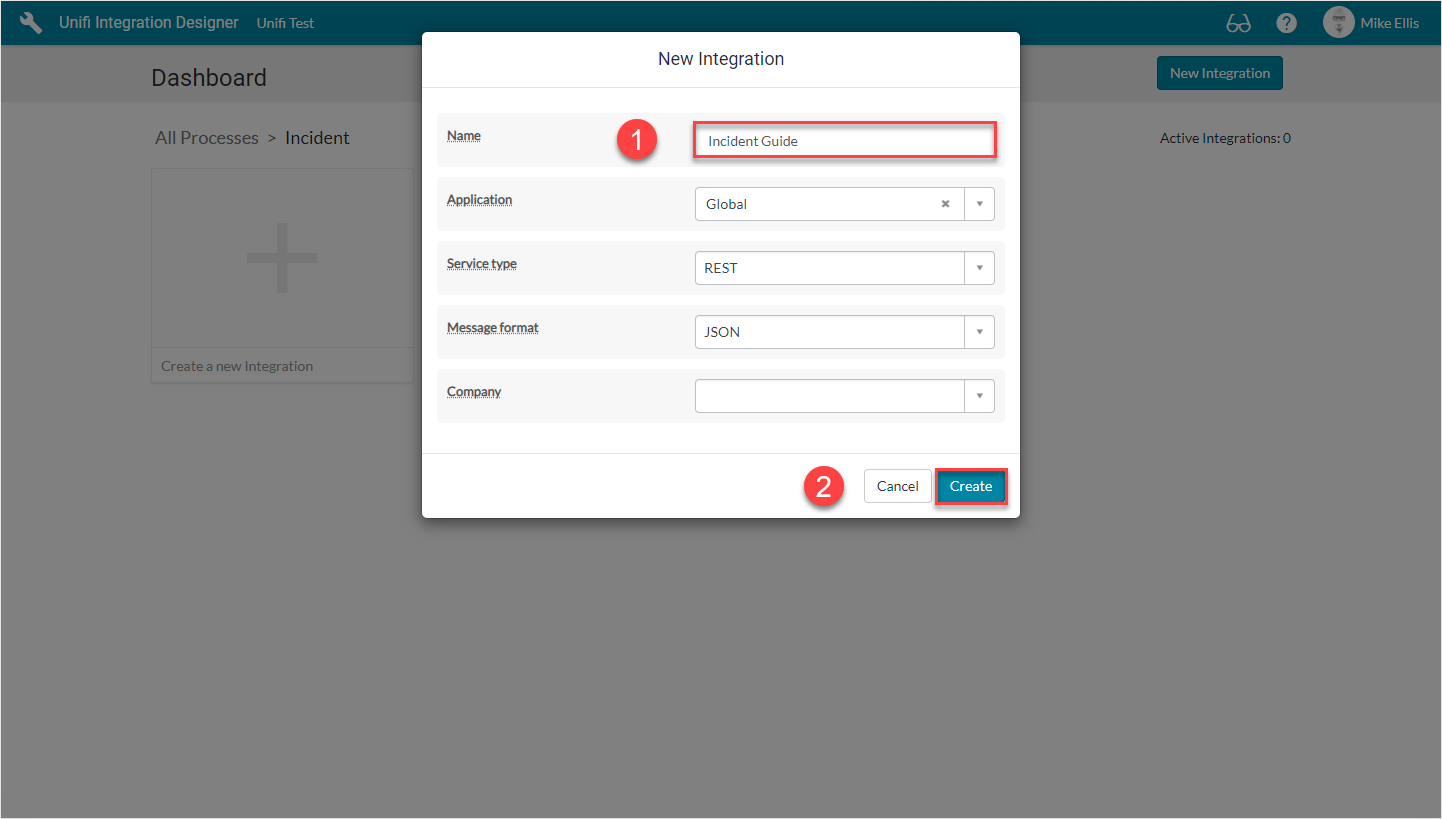

*Your 'New Integration' modal should look like this:*

![](https://content.gitbook.com/content/2EJsRh73QF1TvP9eLF8k/blobs/2AgtvcULDNrnL23F2Og3/baig-integration-1.png)

Click **Create**.

You will be redirected to the Details page of the newly created Integration.

## Icons

{% hint style="info" %}
Before continuing we would like to draw your attention to some of the relevant icons that are now visible down the left hand navigation strip.
{% endhint %}

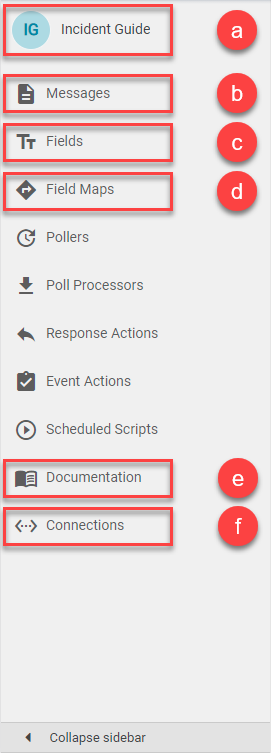

*The icons are:*

![](https://content.gitbook.com/content/2EJsRh73QF1TvP9eLF8k/blobs/wyuw6GPKyHrZdHsNpsx3/baig-integration-2.png)

a) ***'Integration' icon*****:** Opens the current integration's Details page.

b) ***'Messages' icon*****:** Opens the current integration's Messages page.

c) ***'Fields' icon*****:** Opens the current integration's Fields page.

d) ***'Field Maps' icon*****:** Opens the current integration's Field Maps page.

e) ***'Documentation' icon*****:** Opens the automatically generated documentation for the current integration. *(Another awesome feature in **Unifi**.)*

f) ***'Connections' icon*****:** Opens the current integration's Connections page.

## Details

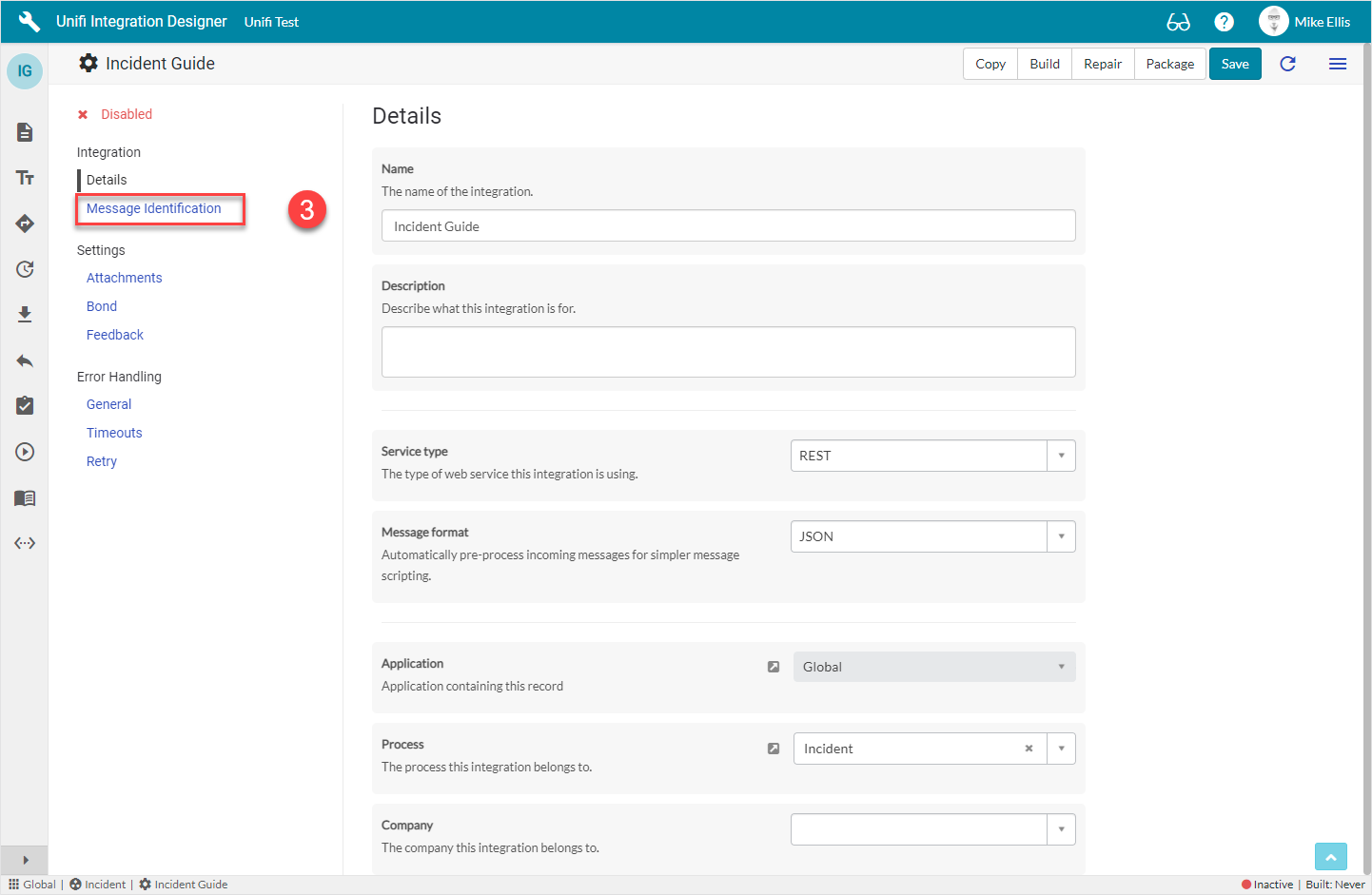

*The Details page of your Integration should look like this:*

![](https://content.gitbook.com/content/2EJsRh73QF1TvP9eLF8k/blobs/B8NmVe314gfkcbfobXyA/baig-integration-3.png)

Navigate to **Integration > Message Identification**.

## Message Identification Fields

{% hint style="info" %}
Unifi needs to identify the name of the inbound message in order to know how to process the inbound data.
{% endhint %}

Update the code in the 'Identify message script' field so that it looks like this:

```javascript
function identify(payload) {

  return (payload.message.name || '') + '';

}
```

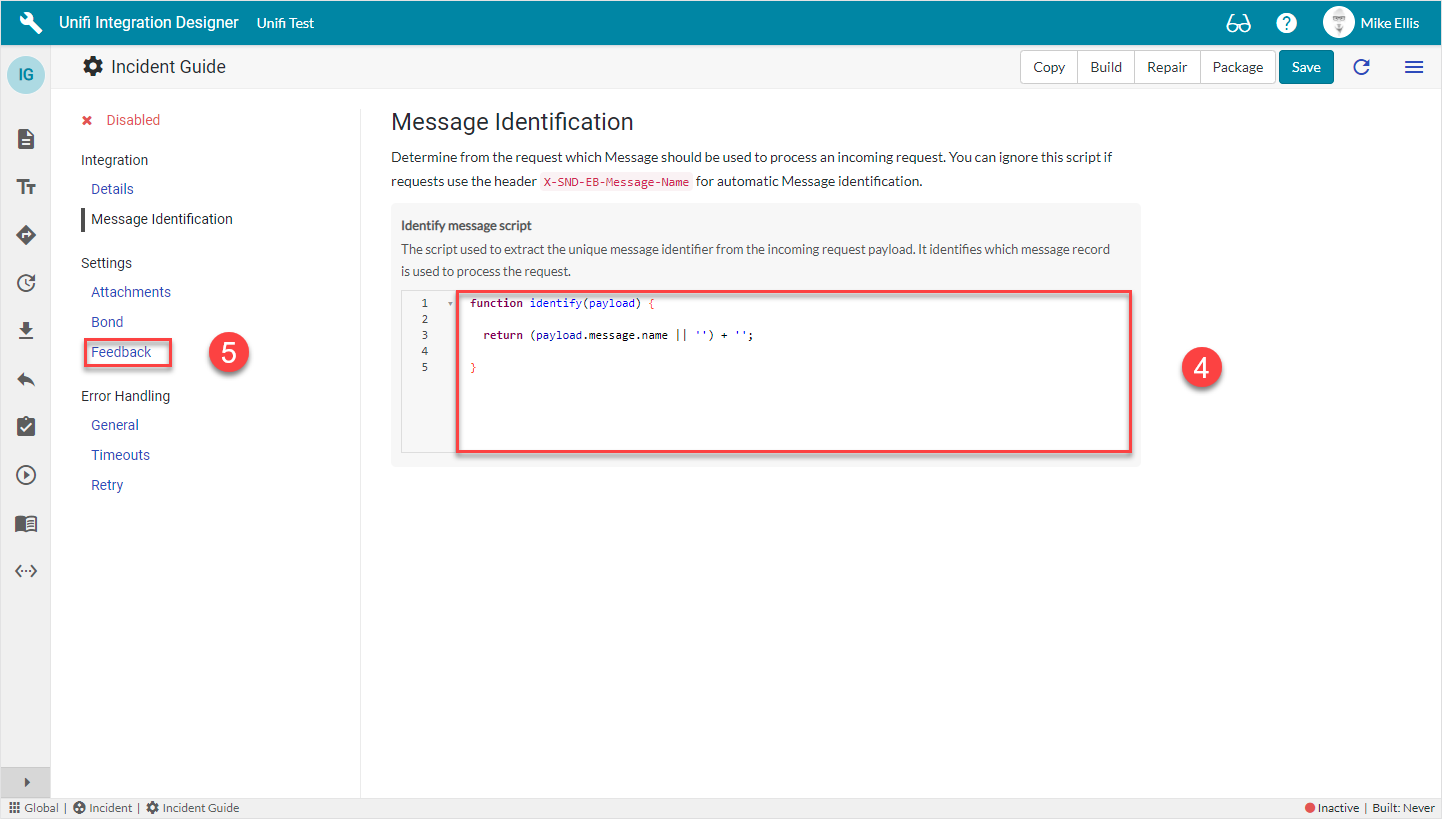

*The Message Identification form should look like this:*

![](https://content.gitbook.com/content/2EJsRh73QF1TvP9eLF8k/blobs/wP2FgbW4FWRz8dNQ2Xij/baig-integration-4.png)

Navigate to **Settings > Feedback**.

## Feedback Settings Fields

The Feedback fields to be configured for the Integration record are as follows:

| Field              | Description                                                                                                              | Value   |
| ------------------ | ------------------------------------------------------------------------------------------------------------------------ | ------- |
| Enable UI messages | Allow information and error messages to be shown to the user as UI Notifications. Only applies to certain notifications. | \<true> |

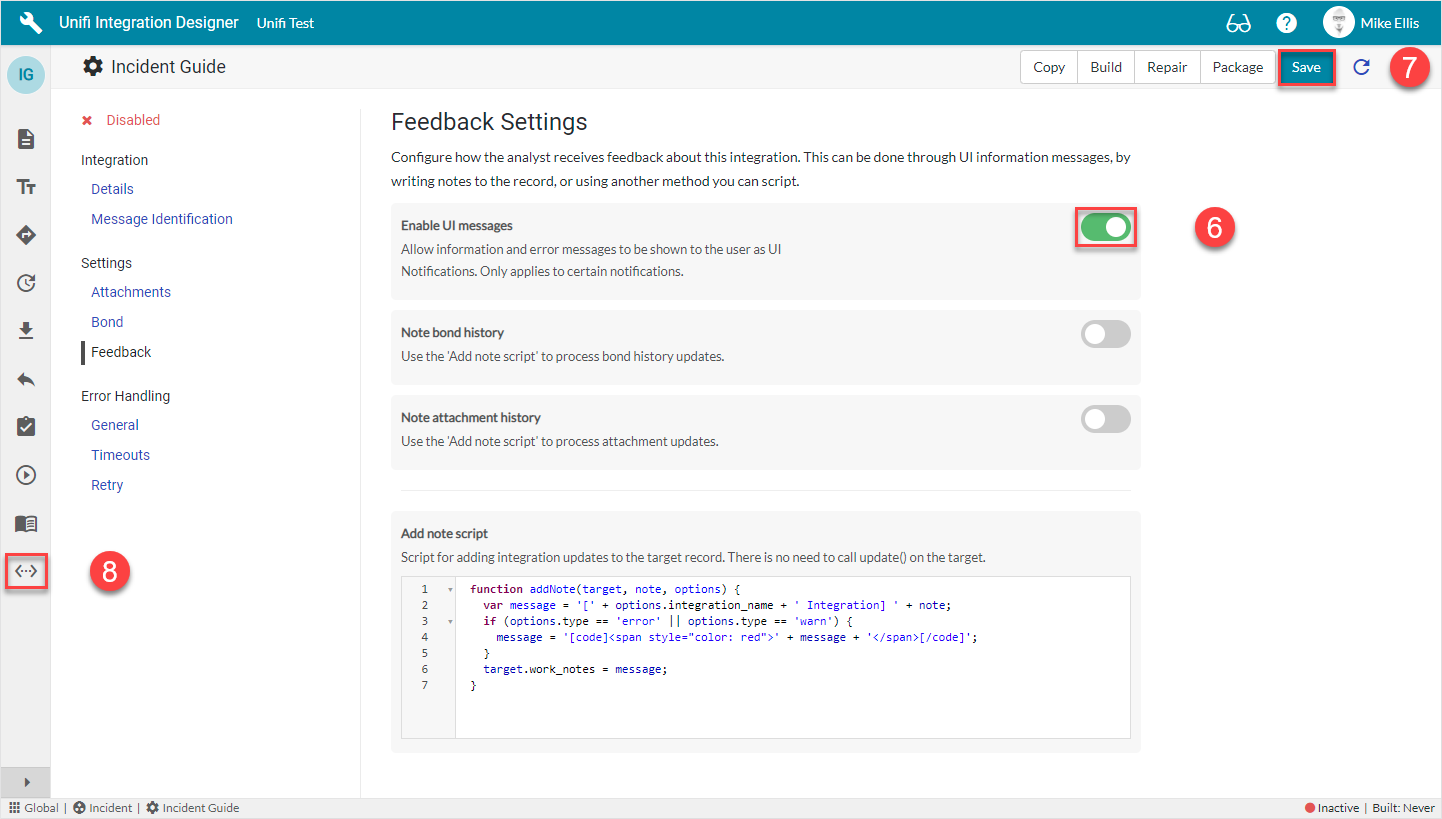

*The Feedback Settings form should look like this:*

![](https://content.gitbook.com/content/2EJsRh73QF1TvP9eLF8k/blobs/PLlhb60sBd084ezaczM4/baig-integration-5.png)

{% hint style="info" %}
All of the remaining 'Settings' values are to be left as-is:

* Attachments Settings
* Bond Settings

All of the 'Error handling' values are to be left as-is:

* General
* Timeouts
* Retry
  {% endhint %}

Click **Save**.

Click the **'Connections' icon** to move on and configure the **Connection**.
