# Integration

## New Integration

In the **Unifi Integration Designer** window, after clicking either on the '**+**' **tile** or '**New Integration**', you are given a 'New Integration' modal to complete.

The fields to be configured for the New Integration modal are as follows:

| Field            | Description                                                                                                 | Value        |
| ---------------- | ----------------------------------------------------------------------------------------------------------- | ------------ |
| Name             | The name of the integration.                                                                                | \<Your Name> |
| Service type\*   | The type of web service this integration is using *(Choices: SOAP/REST)*.                                   | 'REST'       |
| Message format\* | Automatically pre-process incoming messages for simpler message scripting. *(Choices: XML, JSON, Advanced)* | 'JSON'       |

{% hint style="info" %}
\*Service type/Message format: these values are defaulted.
{% endhint %}

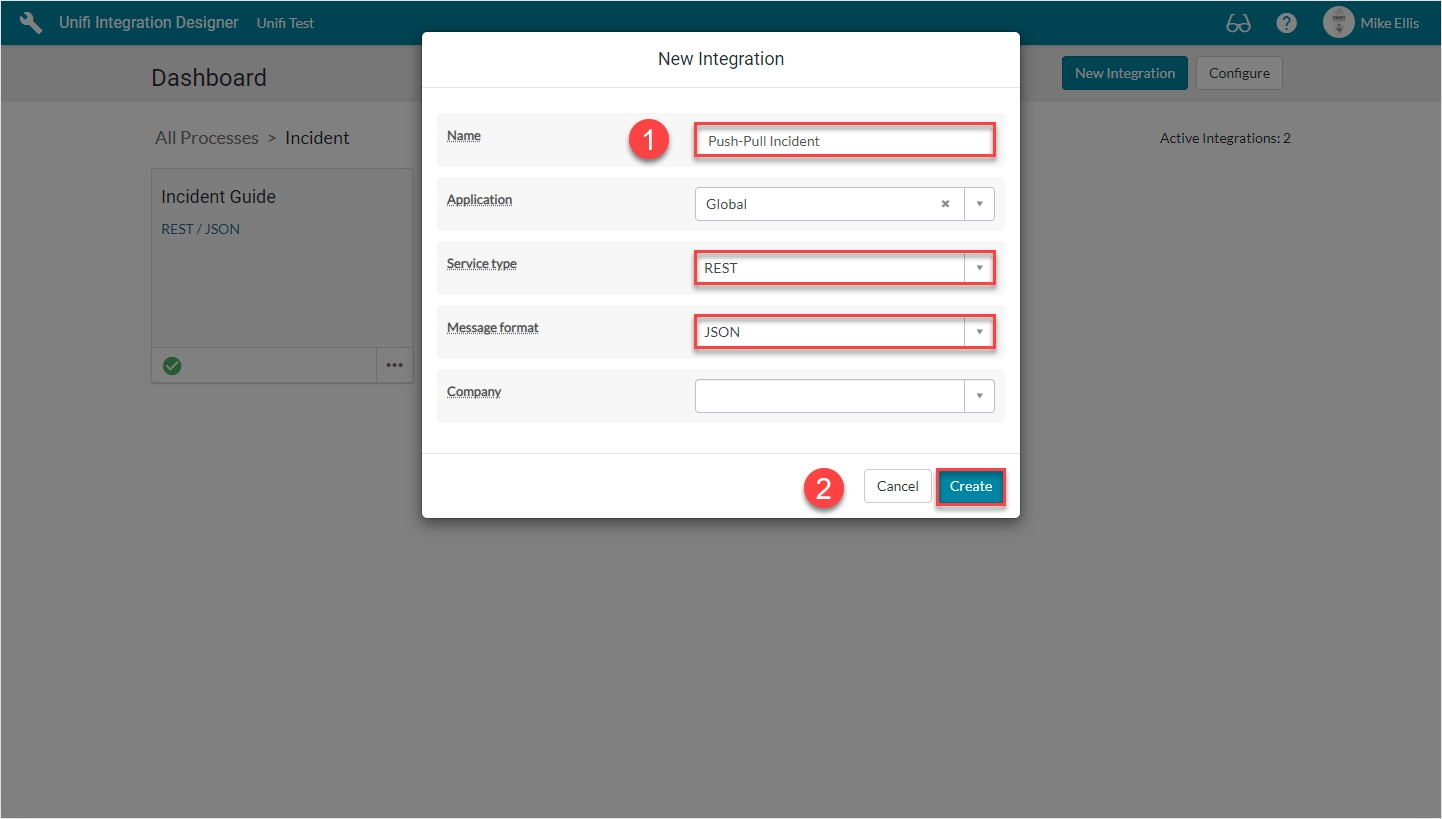

*Your 'New Integration' modal should look like this:*

![](https://content.gitbook.com/content/77WwgPxoLSydiu2bJgNO/blobs/xlFim8moLxusRsCwYQOc/obig-integration-1.png)

{% hint style="info" %}
We have chosen to name this integration 'Push-Pull Incident' as it will also later form the basis for the Poller Guides (where we pull data from your Personal Developer Instance, ‘PDI’).
{% endhint %}

Click **Create**.

You will be redirected to the Details page of the newly created Integration.

## Icons

{% hint style="info" %}
Before continuing we would like to draw your attention to some of the relevant icons that are now visible down the left hand navigation strip.
{% endhint %}

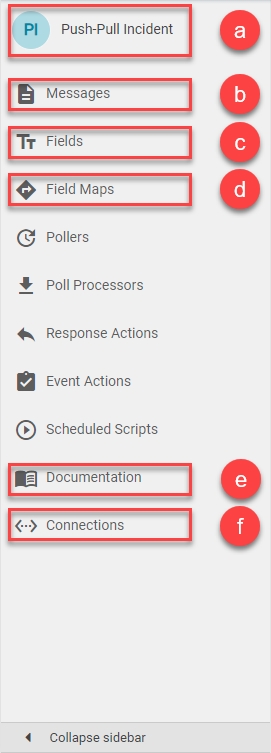

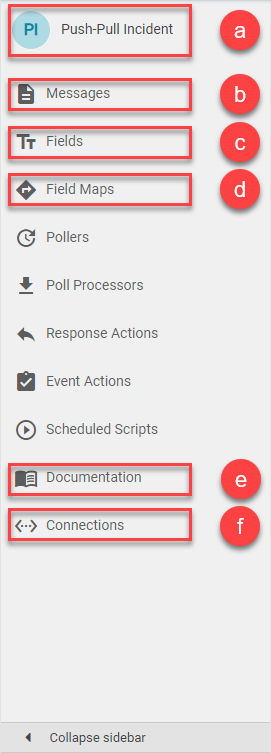

![](https://content.gitbook.com/content/77WwgPxoLSydiu2bJgNO/blobs/NkriKx1Oib6zXKIzM88N/obig-integration-2.png)

*The icons are:*

a) ***'Integration' icon*****:** Opens the current integration's Details page.

b) ***'Messages' icon*****:** Opens the current integration's Messages page.

c) ***'Fields' icon*****:** Opens the current integration's Fields page.

d) ***'Field Maps' icon*****:** Opens the current integration's Field Maps page.

e) ***'Documentation' icon*****:** Opens the automatically generated documentation for the current integration. *(Another awesome feature in **Unifi**.)*

f) ***'Connections' icon*****:** Opens the current integration's Connections page.

## Details

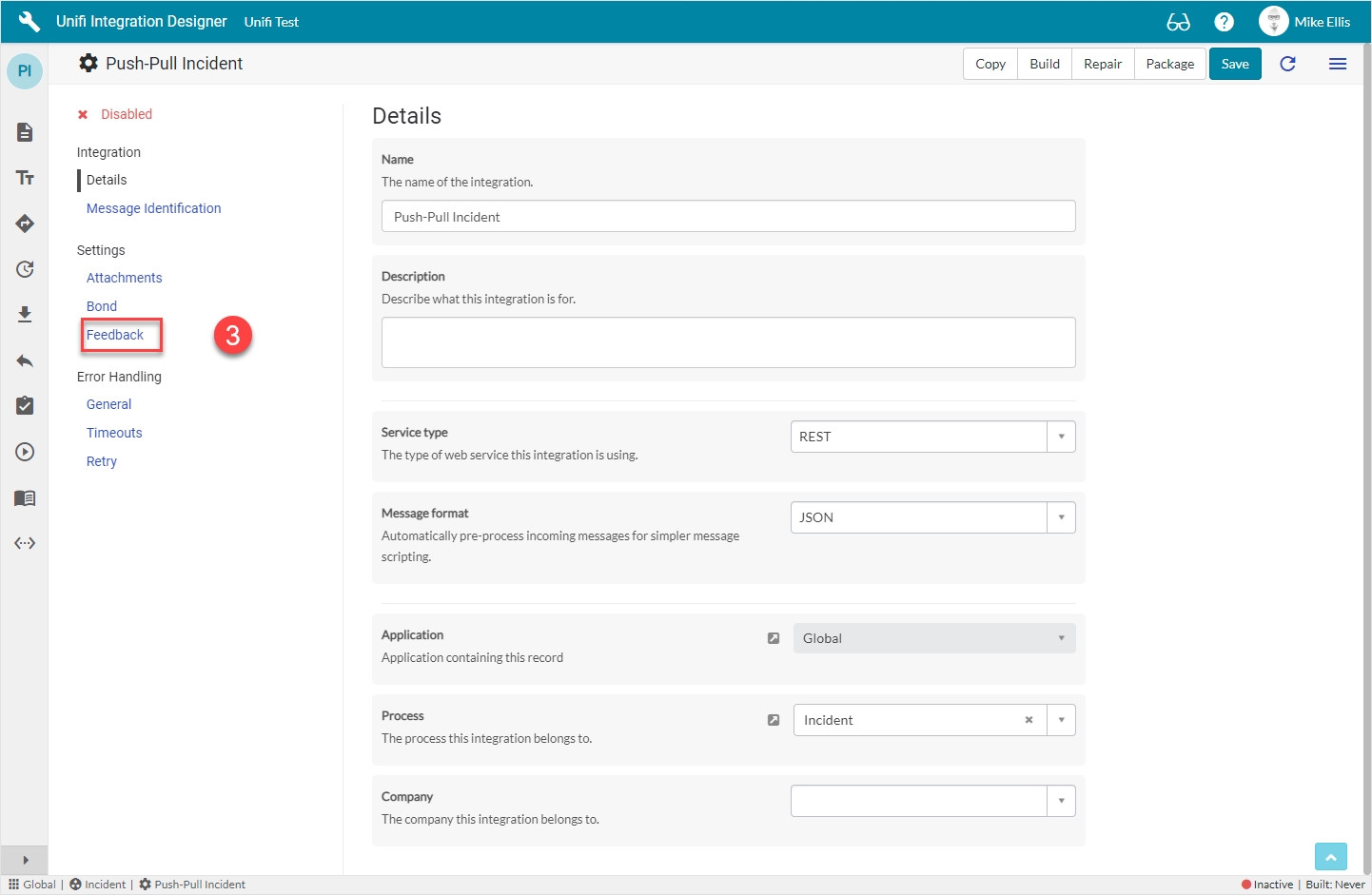

*The Details page of your Integration form should look like this:*

![](https://content.gitbook.com/content/77WwgPxoLSydiu2bJgNO/blobs/cugZvqdSl2QaYeeV81LL/obig-integration-3.png)

Navigate to **Settings > Feedback**.

## Feedback Settings Fields

The Feedback fields to be configured for the Integration record are as follows:

| Field              | Description                                                                                                                                                                                    | Value   |
| ------------------ | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------- |
| Enable UI messages | Allow information and error messages to be shown to the user as UI Notifications. Only applies to certain notifications.                                                                       | \<true> |
| Note bond history  | Use the 'Note bond history' to process bond history updates. *(Set to true for the history to be promoted to the work notes fields of the record we're integrating - for the analyst to view)* | \<true> |

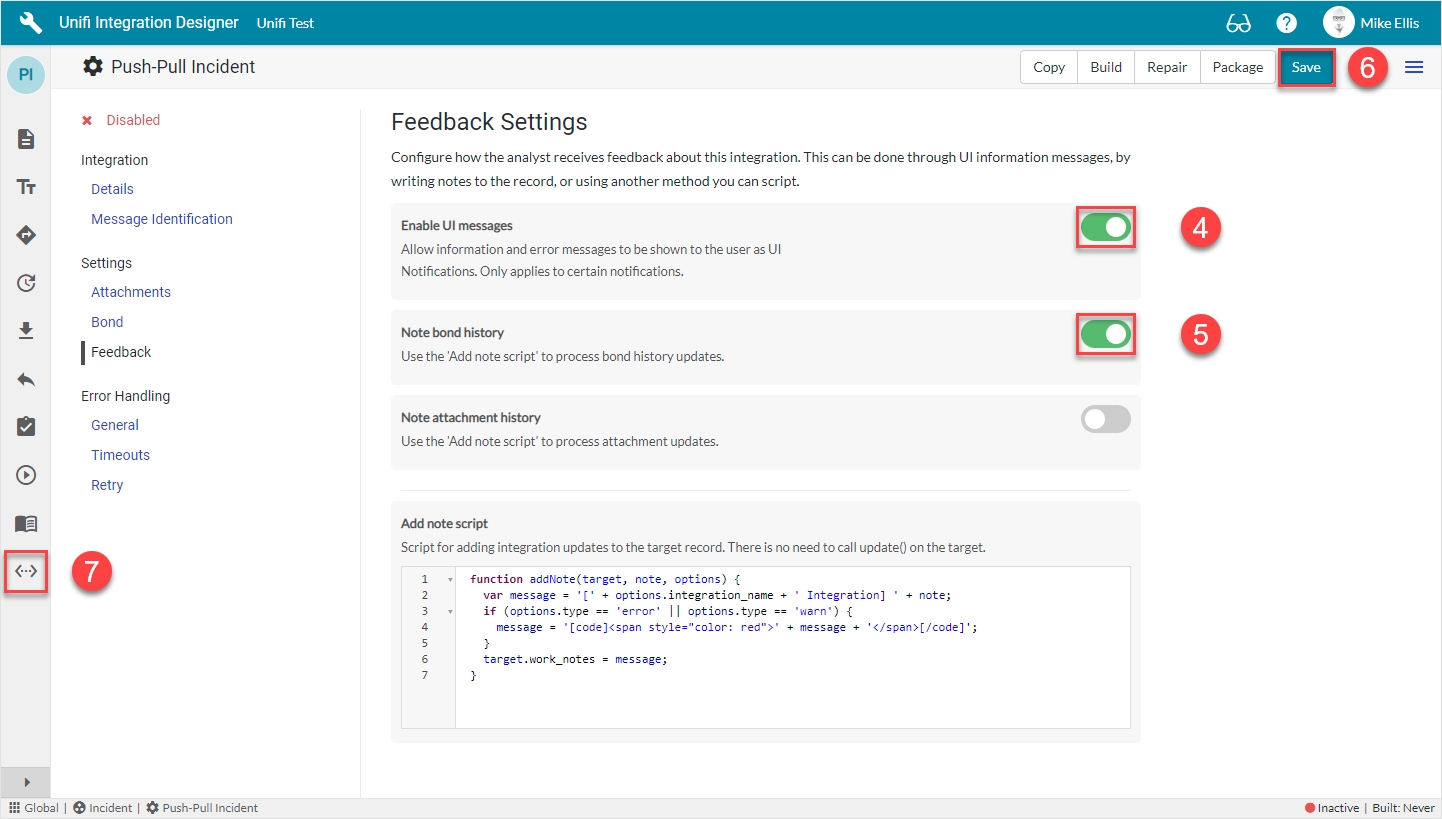

*The Feedback Settings fields should look like this:*

![](https://content.gitbook.com/content/77WwgPxoLSydiu2bJgNO/blobs/PduQOmrJUP8IeBwr8c6v/obig-integration-4.png)

{% hint style="info" %}
The remaining 'Integration' values are to be left as-is:

* Message Identification

All of the remaining 'Settings' values are to be left as-is:

* Attachments Settings
* Bond Settings

All of the 'Error handling' values are to be left as-is:

* General
* Timeouts
* Retry
  {% endhint %}

Click **Save**.

Click the **'Connections' icon** to move on and configure the **Connection**.
